SKU:
PR993284

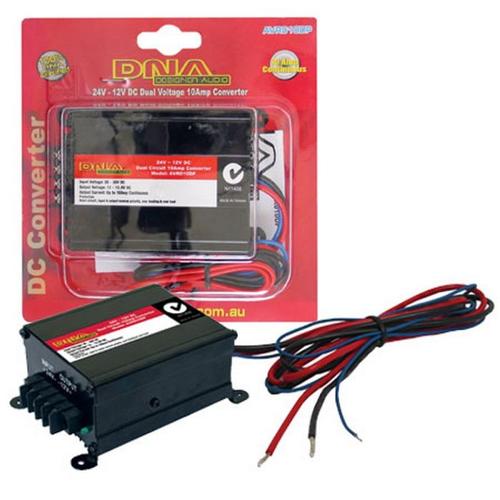

VOLTAGE REDUCER 24V TO 12V @ 10 AMPS CONTINUOUS DUAL OUTPUT
$223.00 AUD
Unit price
/
Unavailable
VOLTAGE REDUCER 24V TO 12V @ 10 AMPS CONTINUOUS DUAL OUTPUT
24 Volt DC to 12 volt DC voltage reducer with dual outputs.
Fitted with 2 independent 12VDC outputs.
Output 1: using the terminals on the side of the case.
Output 2: using the 3 wires.
Red: 12VDC postive output
Black: negative output
Blue: 24VDC trigger wire for activating the circuit.
Input DC voltage range: DC20~30V DC
Output voltage range: 12V~13.8V
Continuous power: 10 Amps
Peak power: 15 Amps
No load current draw: 20mA
Max. power efficency: >90%
Cooling: Air convection
Input polarity reverse: Diode protection
Output polarity reverse: Circuit protection
Over heating: Circuit protection
Over load: Circuit protection
Output short: Circuit protection
Fuse: 15 Amps
Dimension (LxWxH): 90 x 73 x 45mm
Weight: 330g
24 Volt DC to 12 volt DC voltage reducer with dual outputs.
Fitted with 2 independent 12VDC outputs.
Output 1: using the terminals on the side of the case.
Output 2: using the 3 wires.
Red: 12VDC postive output
Black: negative output
Blue: 24VDC trigger wire for activating the circuit.
Input DC voltage range: DC20~30V DC
Output voltage range: 12V~13.8V
Continuous power: 10 Amps
Peak power: 15 Amps
No load current draw: 20mA
Max. power efficency: >90%
Cooling: Air convection
Input polarity reverse: Diode protection
Output polarity reverse: Circuit protection
Over heating: Circuit protection
Over load: Circuit protection
Output short: Circuit protection
Fuse: 15 Amps
Dimension (LxWxH): 90 x 73 x 45mm
Weight: 330g
