SKU:
PR1011082

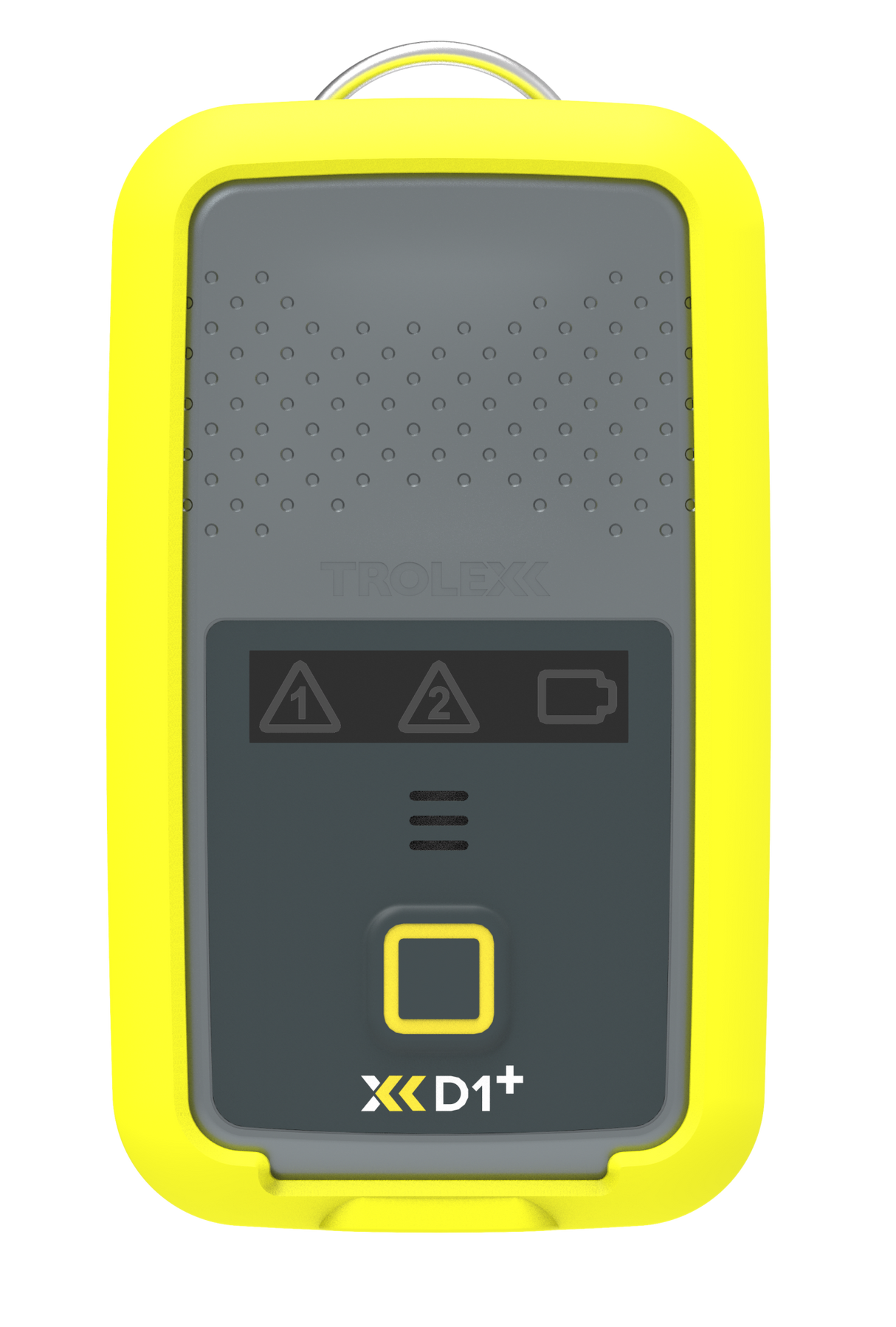

Trolex XD1+ Personal Dust Monitor
$9,895.00 AUD
Unit price
/
Unavailable
Trolex XD1+ Personal Dust Monitor is backordered and will ship as soon as it is back in stock.
Open-path particulate technology allows free flow of air through the unit and gives XD1+ its incredible accuracy and durability detecting microscopic but dangerous particulates
No pump, no pre-filtering, no impactor. XD1+ detects the real content of particulates in the space, constantly monitoring for dangerous particle sizes in real time.
Advanced processing algorithm, detects, counts and sizes up to 100,000 particulates a minute, providing accurate real-time information to save lives.
Optically refined detection chamber allows XD1+ to monitor every particle that flows through the unit.

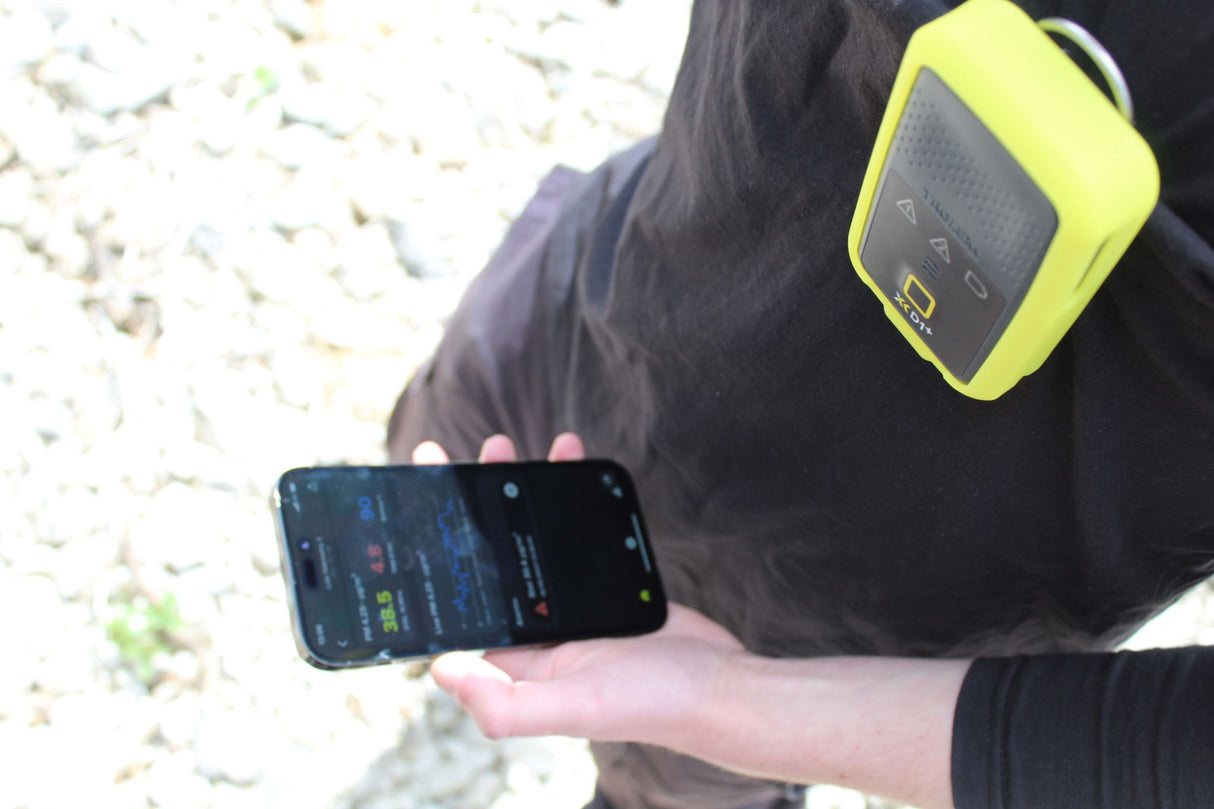

Bluetooth connectivity and RFID pairing, and data docking make downloading and visualising your particulate data easy.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Sensing technology
OPC light-scatter photometer
Particulate measurement
0.1 µm to 10 µm (PM1, PM2.5, PM4.25, PM10)
Operating temperature
-10 °C to 50 °C
Humidity
0% - 95% RH, non-condensing
Ingress protection
IPX4 (main enclosure), IP4X (Particle flow path)
Operating range
Up to ~150 mg/mł
Particulate density range
0.8 g/ml to 8.0 g/ml (default 1.65 g/ml)
Memory capacity
1 GB (6 months data logging at 10 second intervals)
Battery capacity
8.2 Wh lithium ion
Certification
UKCA and CE compliant
No pump, no pre-filtering, no impactor. XD1+ detects the real content of particulates in the space, constantly monitoring for dangerous particle sizes in real time.
Advanced processing algorithm, detects, counts and sizes up to 100,000 particulates a minute, providing accurate real-time information to save lives.
Optically refined detection chamber allows XD1+ to monitor every particle that flows through the unit.
Bluetooth connectivity and RFID pairing, and data docking make downloading and visualising your particulate data easy.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Sensing technology
OPC light-scatter photometer
Particulate measurement
0.1 µm to 10 µm (PM1, PM2.5, PM4.25, PM10)
Operating temperature
-10 °C to 50 °C
Humidity
0% - 95% RH, non-condensing
Ingress protection
IPX4 (main enclosure), IP4X (Particle flow path)
Operating range
Up to ~150 mg/mł
Particulate density range
0.8 g/ml to 8.0 g/ml (default 1.65 g/ml)
Memory capacity
1 GB (6 months data logging at 10 second intervals)
Battery capacity
8.2 Wh lithium ion
Certification
UKCA and CE compliant
