SKU:
PR882218

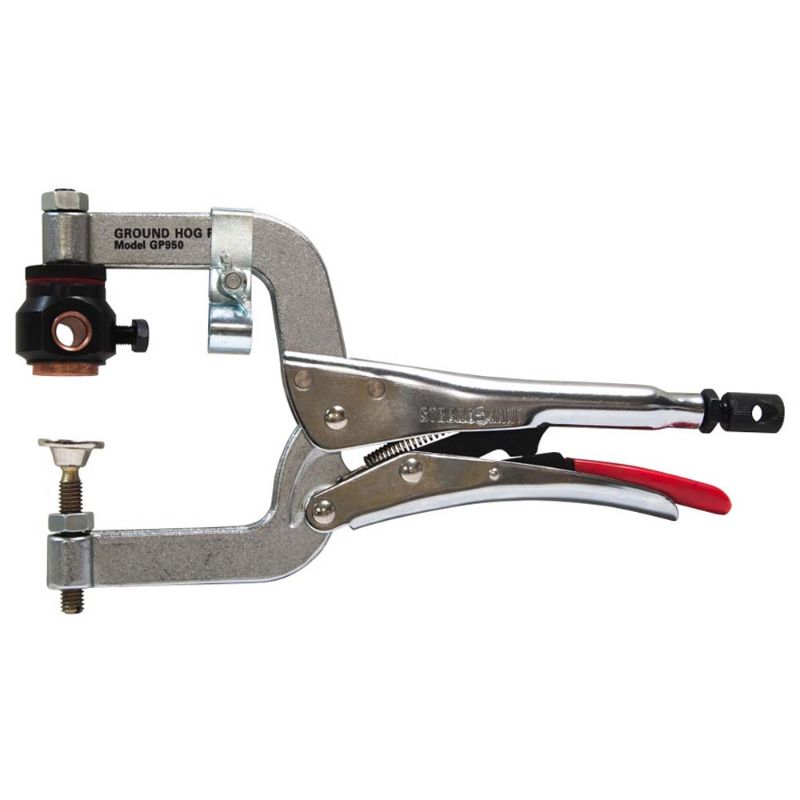

Stronghand Ground Hog Clamp - 450A
$275.00 AUD
Unit price
/
Unavailable
Introducing the Stronghand Ground Hog Clamp - 450A, a high-performance grounding clamp specifically engineered for welders and metal fabrication professionals. This innovative clamp provides exceptional clamping pressure, significantly enhancing arc stability and reducing energy consumption during welding operations. The unique groove design on the copperhead effectively seals out weld spatter, minimizing particle buildup and extending the life of your equipment.
Experience versatility in cable positioning with the rotating Ground Hog body, which allows for easy adjustments to optimize your setup. Rated at an impressive 450 AMPS @ 60% duty cycle with 2/0 cable, this clamp eliminates current restriction and ensures complete current transfer, ultimately boosting your operational efficiency.
The intelligent design isolates the contact surface and cable connection, effectively managing electrical current and prolonging cable life while improving arc stability.
Specifications:
- Amperage / Cable Size: 450A / 2/0
- Throat Depth: 89 mm
- Max. Capacity: 64 mm
- Tapped Hole: M10
- Clamping Pressure: 180 kg
- Overall Length: 280 mm
- Weight: 1.1 kg
Upgrade your welding toolkit with the Stronghand Ground Hog Clamp - 450A today!
SHGP950 | Stronghand Ground Hog Clamp - 450A Grounding Clamps: High clamping pressure enhances arc stability and reduces power consumption. The groove design on the copperhead seals out weld spatter and minimizes particle buildup. The side screw ensures a secure cable connection, while the rotating Ground Hog body offers flexible cable positioning. Rated at 450 AMPS @ 60% duty cycle (with 2/0 cable), it prevents current restriction and allows for complete current transfer. The design controls electrical current, improving arc stability and cable longevity while reducing energy consumption.
Experience versatility in cable positioning with the rotating Ground Hog body, which allows for easy adjustments to optimize your setup. Rated at an impressive 450 AMPS @ 60% duty cycle with 2/0 cable, this clamp eliminates current restriction and ensures complete current transfer, ultimately boosting your operational efficiency.
The intelligent design isolates the contact surface and cable connection, effectively managing electrical current and prolonging cable life while improving arc stability.
Specifications:
- Amperage / Cable Size: 450A / 2/0
- Throat Depth: 89 mm
- Max. Capacity: 64 mm
- Tapped Hole: M10
- Clamping Pressure: 180 kg
- Overall Length: 280 mm
- Weight: 1.1 kg
Upgrade your welding toolkit with the Stronghand Ground Hog Clamp - 450A today!
SHGP950 | Stronghand Ground Hog Clamp - 450A Grounding Clamps: High clamping pressure enhances arc stability and reduces power consumption. The groove design on the copperhead seals out weld spatter and minimizes particle buildup. The side screw ensures a secure cable connection, while the rotating Ground Hog body offers flexible cable positioning. Rated at 450 AMPS @ 60% duty cycle (with 2/0 cable), it prevents current restriction and allows for complete current transfer. The design controls electrical current, improving arc stability and cable longevity while reducing energy consumption.
