SKU:
PR1019410

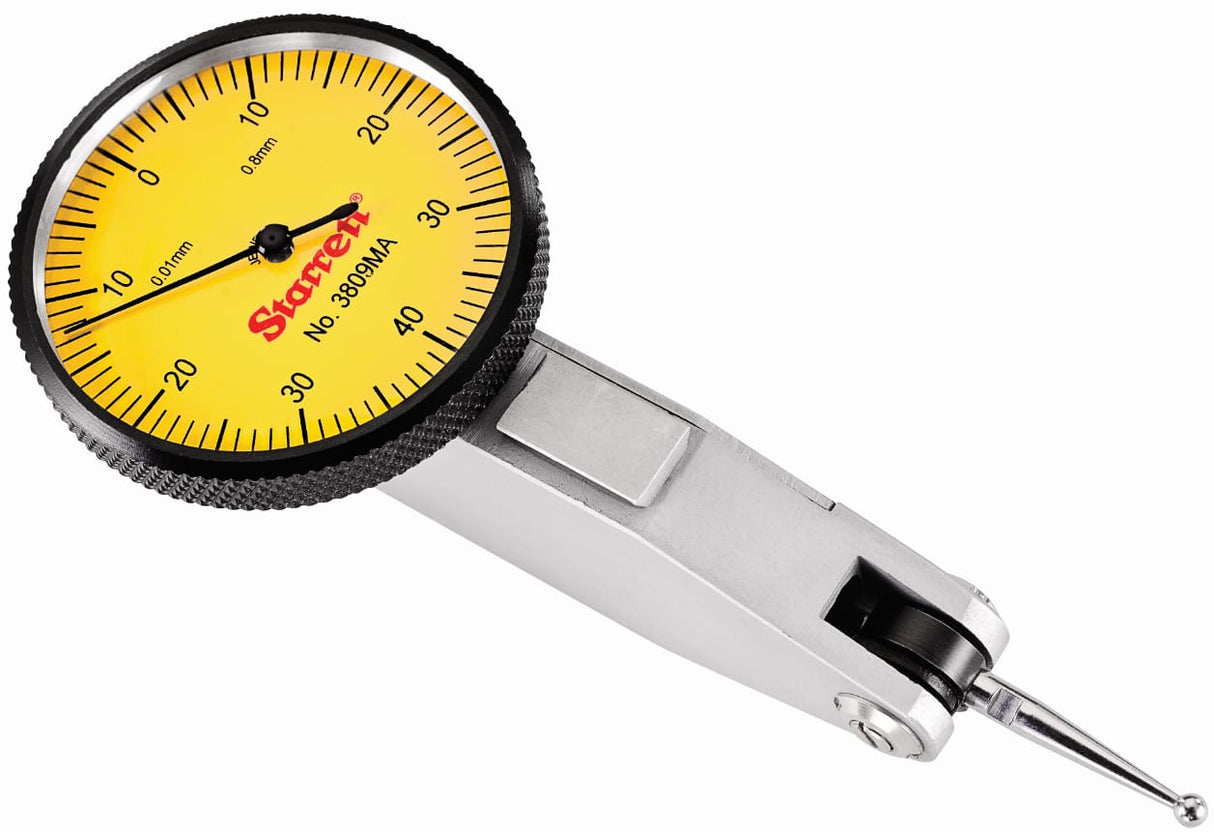

Starrett Indicator Dial 3809MA
$834.00 AUD
Unit price
/
Unavailable
The Starrett 3809 precise, high quality test indicator offers a full complement of standard features. Indicator includes two dovetail clamps and case.
Three dovetail positioning mounts work with most existing test indicator accessories
Precision gear-driven design with smooth, jeweled movement
Contact point reverses automatically, always maintaining clockwise hand rotation
Contacts are frictionally adjustable and replaceable
Meets or exceeds ANSI/ASME accuracy specifications
High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators
Narrow body for in reach ability
Satin chrome finish for durability
Attachments: 4mm contact point, 9.5mm & 4mm dovetail clamps & case
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Range
0.8mm
Graduations
0.01mm
Dial Reading
0-40-0
Dial Colour
Yellow
Dial Face
32mm
Mfr No.
3809MA
Three dovetail positioning mounts work with most existing test indicator accessories
Precision gear-driven design with smooth, jeweled movement
Contact point reverses automatically, always maintaining clockwise hand rotation
Contacts are frictionally adjustable and replaceable
Meets or exceeds ANSI/ASME accuracy specifications
High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators
Narrow body for in reach ability
Satin chrome finish for durability
Attachments: 4mm contact point, 9.5mm & 4mm dovetail clamps & case
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Range
0.8mm
Graduations
0.01mm
Dial Reading
0-40-0
Dial Colour
Yellow
Dial Face
32mm
Mfr No.
3809MA
