SKU:
PR1163477

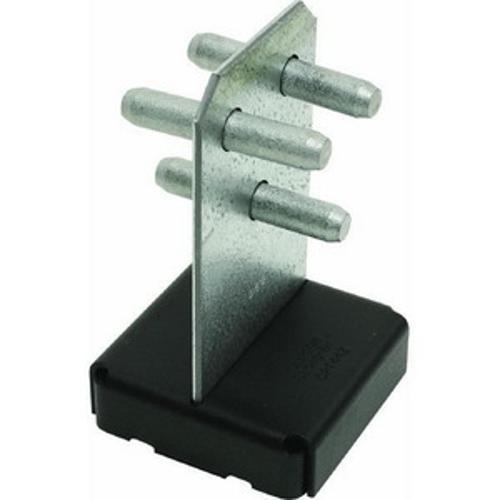

Post Base Concealed Post Tie Kit 90 x 90mm Steel Galvanised CPT44Z
$73.00 AUD
Unit price
/
Unavailable
Post Base Concealed Post Tie Kit 90 x 90mm Steel Galvanised CPT44Z is backordered and will ship as soon as it is back in stock.
Post Base Concealed Post Tie Kit 90 x 90 mm Steel Galvanised CPT44Z
Description
The Concealed Post Tie is designed to use with a 12 mm diameter anchor. The concealed post base offers a 25 mm standoff above the concrete and ensures a clean and concealed look. It minimizes the decay potential at the post end and endures weather and water. Robust tie is rated for uplift, download and lateral load applications. Tie works complements both cast-in-place and retrofitted to facilitate adhesive or mechanical anchors. Tie measuring 90 mm x 90 mm is made from steel for added strength and the galvanized finish prevents corrosion.
Features & Benefits
Compatible with 12 mm diameter anchor
The CPTZ is tested and load-rated for uplift, download and lateral load
Simpson strong - tie saves installers time by providing all the necessary components to make the connection in one box
The CPTZ anchorage can either be cast-in-place or retrofitted with adhesive or mechanical anchors
Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-braced or non-top supported installations
The holes in the CPTZ tabs are sized for 12 mm diameter anchors
For cast-in-place anchors, there should be 22 mm (+/- 3 mm) of anchor above the top surface of the concrete
Brand: Simpson Strong-Tie
Description
The Concealed Post Tie is designed to use with a 12 mm diameter anchor. The concealed post base offers a 25 mm standoff above the concrete and ensures a clean and concealed look. It minimizes the decay potential at the post end and endures weather and water. Robust tie is rated for uplift, download and lateral load applications. Tie works complements both cast-in-place and retrofitted to facilitate adhesive or mechanical anchors. Tie measuring 90 mm x 90 mm is made from steel for added strength and the galvanized finish prevents corrosion.
Features & Benefits
Compatible with 12 mm diameter anchor
The CPTZ is tested and load-rated for uplift, download and lateral load
Simpson strong - tie saves installers time by providing all the necessary components to make the connection in one box
The CPTZ anchorage can either be cast-in-place or retrofitted with adhesive or mechanical anchors
Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-braced or non-top supported installations
The holes in the CPTZ tabs are sized for 12 mm diameter anchors
For cast-in-place anchors, there should be 22 mm (+/- 3 mm) of anchor above the top surface of the concrete
Brand: Simpson Strong-Tie
