SKU:
PR993952

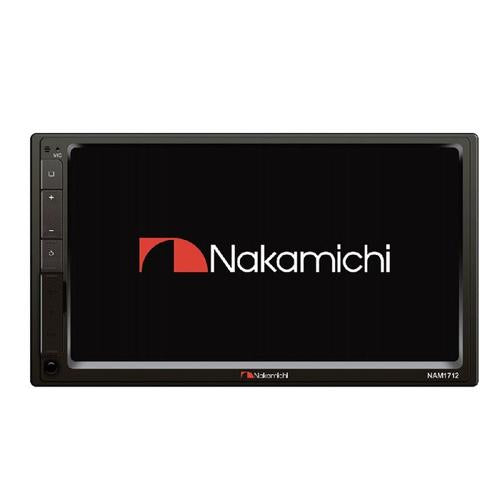

NAKAMICHI HEAD UNIT NAM1712 DOUBLE DIN ANDROID AND APPLE MIRROR LINK
$535.00 AUD
Unit price
/
Unavailable
NAKAMICHI HEAD UNIT NAM1712 DOUBLE DIN ANDROID AND APPLE MIRROR LINK
Voltage 14.4V(10.5-16V)
Panel Installation Size
178×100mm
170×96mm
Net Weight 0.8kg
TFT SCREEN ITEM
Display Size 7''
Display Resolution 800×480
Contrast Degree 400
Brightness 400nit
BLUETOOTH
Communication System BT4.0+EDR
Frequency Band 2.4GHz
Max Range 5m
AUDIO
Maximum Power 4×50W
FrontOutput(V) 4V/10KO
Pre-output impedance =600O
Speaker impedance 4-8O
VIDEO
External Video Input system NTSC/PAL/SECAM
Exteral Video Input 1VP-P/75O
VIDEO FORMAT
H264/MP4/AIV/MKV/FLV
AUDIO FORMAT
MP3/APE/AAC/FLAC
USB INTERFACE
USB Readable/Chargeable (5±0.25V/1A)
RADIO
FM Frequency Range 87.5-108.0MHZ
AM FM Frequency Range 522-1620KHZ
*Modification to brackets for install in vehicles may be required
Voltage 14.4V(10.5-16V)
Panel Installation Size
178×100mm
170×96mm
Net Weight 0.8kg
TFT SCREEN ITEM
Display Size 7''
Display Resolution 800×480
Contrast Degree 400
Brightness 400nit
BLUETOOTH
Communication System BT4.0+EDR
Frequency Band 2.4GHz
Max Range 5m
AUDIO
Maximum Power 4×50W
FrontOutput(V) 4V/10KO
Pre-output impedance =600O
Speaker impedance 4-8O
VIDEO
External Video Input system NTSC/PAL/SECAM
Exteral Video Input 1VP-P/75O
VIDEO FORMAT
H264/MP4/AIV/MKV/FLV
AUDIO FORMAT
MP3/APE/AAC/FLAC
USB INTERFACE
USB Readable/Chargeable (5±0.25V/1A)
RADIO
FM Frequency Range 87.5-108.0MHZ
AM FM Frequency Range 522-1620KHZ
*Modification to brackets for install in vehicles may be required
