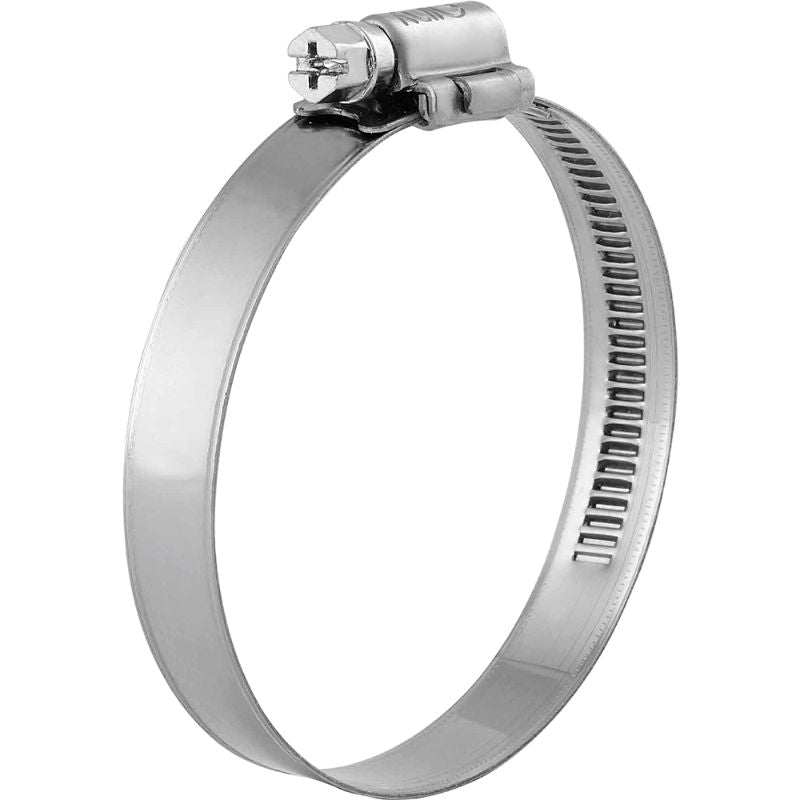

Kale WD12 90-110mm W3 (Ea)

Introducing the Kale WD12 Worm Drive Clamp, a premium fastening solution designed for demanding applications. With a capacity range of 90-110mm, this 12mm band width worm drive clamp provides a secure grip for a variety of materials. Its robust W3 grade stainless steel construction ensures exceptional durability and corrosion resistance, making it ideal for both automotive and industrial uses. The unique one-piece housing design enhances strength while reducing the risk of failure during operation.

This lightweight clamp is easy to assemble, featuring a compact housing and a burr-free convex band edge for a smooth installation experience. Engineered for optimal performance, the Kale WD12 offers a high clamping force with a recommended tightening torque of only 5.0Nm. Its excellent traceability ensures reliability for your projects, while compliance with ISO 9001, ISO 14001, and ISO TS 16949 standards demonstrates a commitment to quality that meets global automotive industry expectations.

Choose the Kale WD12 for your clamping needs and guarantee your projects benefit from the strength and quality they deserve.

**Product Details:**
- Model: WD1290110W3 - 12mm Band Width Worm Drive Clamp
- Capacity: 90-110mm
- Features:
- Lightweight with easy assembly and compact housing
- Durable, with a mechanically locked single-piece design
- Burr-free and convex band edges
- 100% product traceability
- High clamping force with low tightening torque

**Technical Specifications:**
- Band Width: 12mm
- Capacity (min - max): 90-110mm
- Tightening Torque (max): 5.0Nm
- Screw Housing Length: 24mm
- Grade W3: Stainless Steel for Screw, Band, and Housing
- Corrosion Resistance (min. hours): ISO 9227 - 200 hours
- Screw Head: FL | 7mm Hex

Kale is certified with ISO TS 16949, ISO 9001, and ISO 14001 management systems in line with global automotive industry standards. Enjoy peace of mind with your purchase!
