SKU:
PR877037

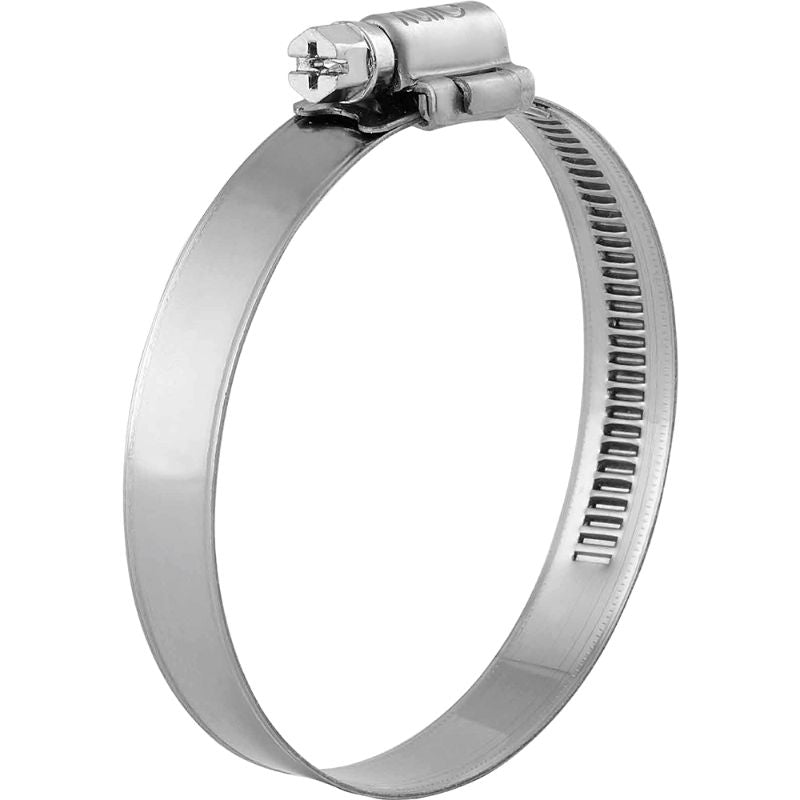

Kale WD12 100-120mm W3 (Ea)
$15.10 AUD
Unit price
/
Unavailable
Kale WD12 100-120mm W3 (Ea) is backordered and will ship as soon as it is back in stock.
**WD12100120W3 - 12mm Band Width Worm Drive Clamp WD12 | 100-120mm Capacity | W3**
**Features:**
- Lightweight design allows for easy assembly and a compact footprint.
- Enhanced durability thanks to a mechanically locked single-piece housing design.
- Burr-free and convex band edges prioritize user safety.
- Comprehensive traceability ensures product quality.
- High clamping force achieves optimal performance with minimal tightening torque.
**Technical Specifications:**
- Band Width: 12mm
- Capacity (min - max): Ř 100-120mm
- Maximum Tightening Torque: 5.0Nm
- Screw Housing Length: 24mm
- Grade W3: Stainless Steel for Screw, Band & Housing
- Corrosion Resistance: Minimum 200 hours per ISO 9227
- Screw Head: FL | 7mm Hex
**Recommended Torque and Speed:**
- Follow the recommended tightening torque for best results.
- Ideal tightening speed is between 300 - 350 rpm.
**Materials:**
- Screw: 1.4016 Stainless DIN EN-10088-3 or equivalent
- Housing & Band: 1.4016 Stainless DIN EN-10088-2 or equivalent
- Note: Maximum 10% red rust is permissible on the total surface of W3 products after salt spray testing.
KALE holds certifications for ISO TS 16949, ISO 9001, and ISO 14001 management systems, demonstrating compliance with the standards of the global automotive industry.
**Features:**
- Lightweight design allows for easy assembly and a compact footprint.
- Enhanced durability thanks to a mechanically locked single-piece housing design.
- Burr-free and convex band edges prioritize user safety.
- Comprehensive traceability ensures product quality.
- High clamping force achieves optimal performance with minimal tightening torque.
**Technical Specifications:**
- Band Width: 12mm
- Capacity (min - max): Ř 100-120mm
- Maximum Tightening Torque: 5.0Nm
- Screw Housing Length: 24mm
- Grade W3: Stainless Steel for Screw, Band & Housing
- Corrosion Resistance: Minimum 200 hours per ISO 9227
- Screw Head: FL | 7mm Hex
**Recommended Torque and Speed:**
- Follow the recommended tightening torque for best results.
- Ideal tightening speed is between 300 - 350 rpm.
**Materials:**
- Screw: 1.4016 Stainless DIN EN-10088-3 or equivalent
- Housing & Band: 1.4016 Stainless DIN EN-10088-2 or equivalent
- Note: Maximum 10% red rust is permissible on the total surface of W3 products after salt spray testing.
KALE holds certifications for ISO TS 16949, ISO 9001, and ISO 14001 management systems, demonstrating compliance with the standards of the global automotive industry.
