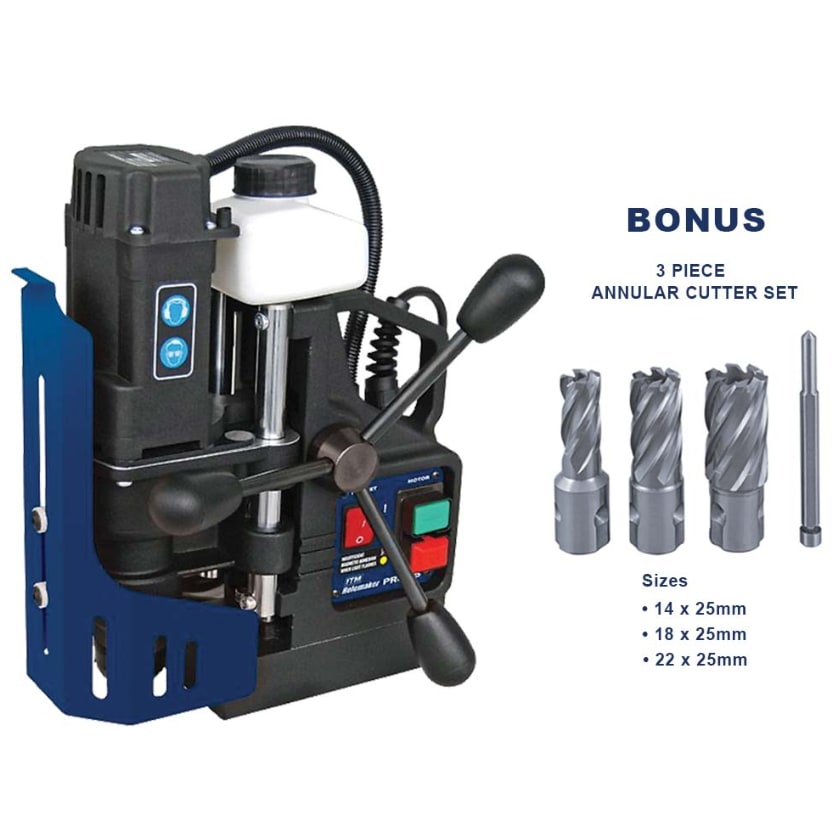

Holemaker MagBase Pro35 Drill 920W
$4,430.00 AUD
Unit price
/
Unavailable
The Holemaker PRO 35 is a high quality, compact and robust, fully featured machine. Weighing in at just 10kg, this machine is ideal for those on-site and overhead tasks.
Features include a gravity feed coolant system with a magnetically attached coolant bottle, allowing coolant feed whilst drilling in vertical applications
The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions
Dual rail slide system provides rigidity and eliminates the need for gib adjustments
With BONUS 3 Piece Annular Cutter Set Sizes 14mm x 25mm, 18mm x 25mm, 22mm x 25mm, Pilot Pin
12mm twist drill capacity using Weldon shank twist drill bits
**SUPPLIED IN CARRY CASE WITH CUTTER GUARD & SAFETY STRAP**
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Capacity (Diameter/max)
35mm
DOC (Depth of Cut/max)
52mm
Height (min / max)
306mm / 376mm
Capacity (Twist Drills)
16mm (Weldon Shank ONLY)
Motor Input Power
1000 Watt
Motor Output Power
920 Watt
Speed
350rpm
Magnet Dead Lift
9500Nm (25mm steel plate)
Weight
10kg
Mfr No
HMPRO35K1
Features include a gravity feed coolant system with a magnetically attached coolant bottle, allowing coolant feed whilst drilling in vertical applications
The feed handles can be placed on either the left or right hand side, providing further versatility when using this compact machine in tight positions
Dual rail slide system provides rigidity and eliminates the need for gib adjustments
With BONUS 3 Piece Annular Cutter Set Sizes 14mm x 25mm, 18mm x 25mm, 22mm x 25mm, Pilot Pin
12mm twist drill capacity using Weldon shank twist drill bits
**SUPPLIED IN CARRY CASE WITH CUTTER GUARD & SAFETY STRAP**
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Capacity (Diameter/max)
35mm
DOC (Depth of Cut/max)
52mm
Height (min / max)
306mm / 376mm
Capacity (Twist Drills)
16mm (Weldon Shank ONLY)
Motor Input Power
1000 Watt
Motor Output Power
920 Watt
Speed
350rpm
Magnet Dead Lift
9500Nm (25mm steel plate)
Weight
10kg
Mfr No
HMPRO35K1
