SKU:
PR882185

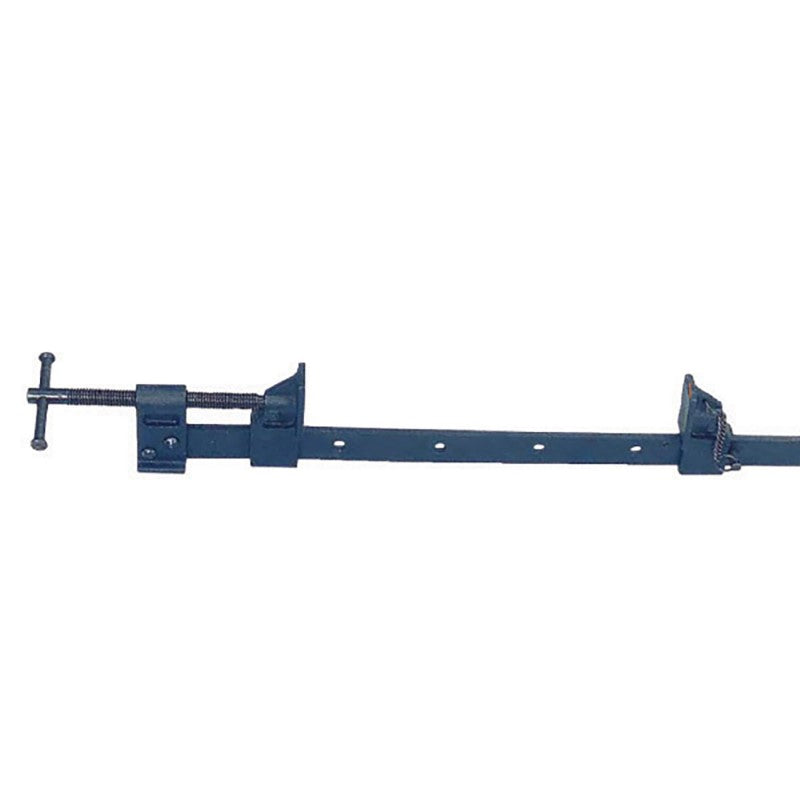

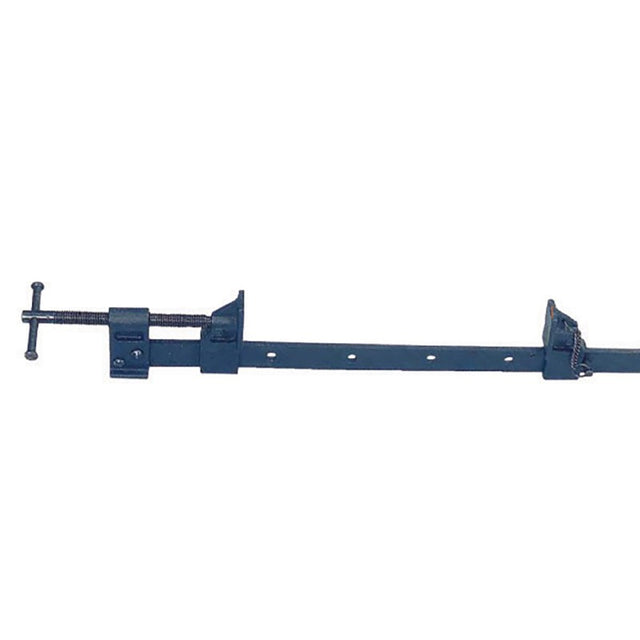

Groz Sash Clamp, Rectangular Section,1200mm Long 1050mm Cap.
$255.00 AUD
Unit price
/
Unavailable
**GZ39114 | Groz Sash Clamp Rectangular Section 1200mm Long 1050mm Capacity**
- Bar cramps are particularly useful for clamping large section workpieces during fabrication and gluing in joinery, carpentry, and boat building.
- The bars are constructed from drawn steel with dimensions of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength, even under heavy tension. Both the head and slide feature a flat bottom, allowing the bar to stand upright without additional support.
- The head is fitted square to the bar with a 1.5° to 2° taper for true parallel clamping action.
- The main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
- The screw utilizes rolled Acme threads that enhance strength and wear resistance.
**Specifications:**
- Bar Length: 1200mm
- Clamp Capacity: 1050mm
- Throat Depth: 50mm (2in)
- Width of Clamp Face: 30mm (1-3/16”)
- Bar cramps are particularly useful for clamping large section workpieces during fabrication and gluing in joinery, carpentry, and boat building.
- The bars are constructed from drawn steel with dimensions of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength, even under heavy tension. Both the head and slide feature a flat bottom, allowing the bar to stand upright without additional support.
- The head is fitted square to the bar with a 1.5° to 2° taper for true parallel clamping action.
- The main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
- The screw utilizes rolled Acme threads that enhance strength and wear resistance.
**Specifications:**
- Bar Length: 1200mm
- Clamp Capacity: 1050mm
- Throat Depth: 50mm (2in)
- Width of Clamp Face: 30mm (1-3/16”)
