SKU:
PR1047410

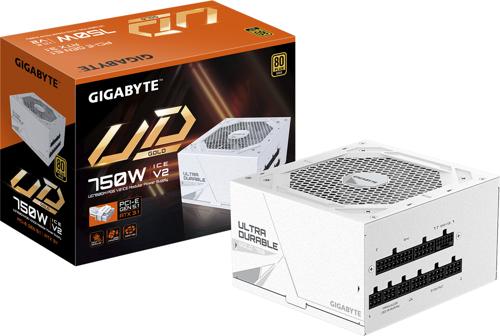

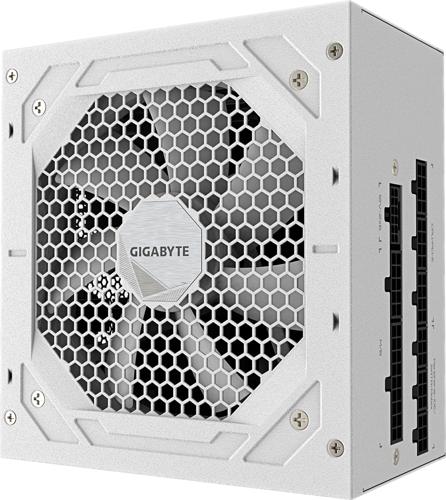

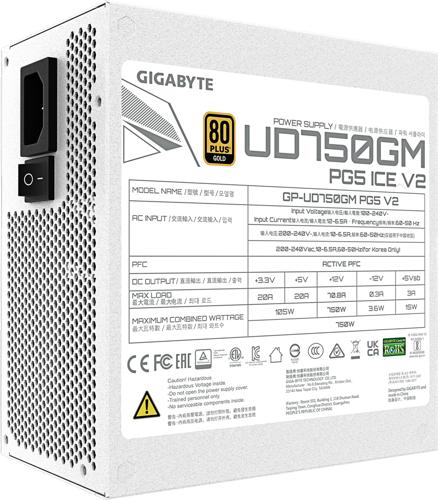

Gigabyte GP-UD750GM ICE 750W ATX Gold Full Modular PSU 5yr wty
$432.00 AUD
Unit price
/
Unavailable
Ultra Durable
100% Japanese capacitors
120mm smart hydraulic bearing (HYB) fan
Optimized thermal solution
OVP/OPP/SCP/UVP/OCP/OTP protection
Intel ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact size
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Currnt
16-6.5A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
16ms
Cable Type
Embossed, All white
Connectors
ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm1 PCI-e 6+2 Pin x 4 : 600mm+150mm2 PCI-e 12+4 Pin x 1:700mm1 SATA x 8 : 600mm+150mm+150mm+150mm2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm1
100% Japanese capacitors
120mm smart hydraulic bearing (HYB) fan
Optimized thermal solution
OVP/OPP/SCP/UVP/OCP/OTP protection
Intel ATX 3.1 and PCIe Gen 5.1 ready
80 PLUS Gold certified
Fully modular design
Powerful single +12V rail
Compact size
Type
Intel Form Factor ATX 12V v3.1
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Currnt
16-6.5A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimensions
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing(HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
100,000 hours
Protections
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
16ms
Cable Type
Embossed, All white
Connectors
ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm1 PCI-e 6+2 Pin x 4 : 600mm+150mm2 PCI-e 12+4 Pin x 1:700mm1 SATA x 8 : 600mm+150mm+150mm+150mm2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm1
