SKU:
PR1047260

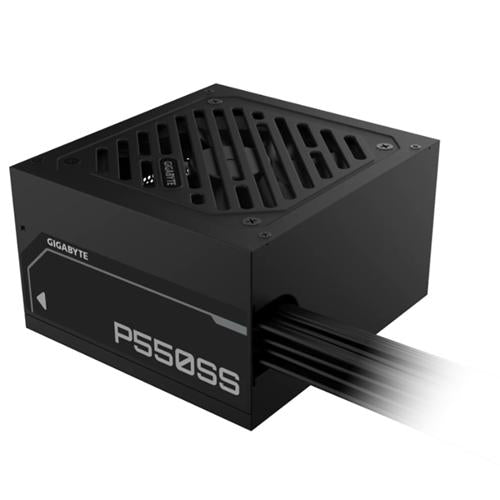

Gigabyte GP-P550SS 550W ATX SILVER PSU 3yr wty
$194.00 AUD
Unit price
/
Unavailable
The Gigabyte P550SS Power Supply offers reliable performance and efficiency with its 80 PLUS Silver certification, ensuring a 90% efficiency rate at a 50% load. Compliant with Intel ATX 3.0 standard, it supports up to 2x total power excursion, providing stable power output and compatibility. Equipped with a 120mm Fluid Dynamic Bearing (FDB) Fan, it delivers quiet operation and enhanced lifespan. With a flat cable design, powerful single +12V rail, and comprehensive protection features, it guarantees stable operation and hardware safety.
80 PLUS Silver certified (230V EU)
Support Intel ATX 3.0 standard
120mm Fluid Dynamic Bearing (FDB) Fan
Flat cable design
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
3 years warranty (Adjusted according to different regions)
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
155-240 Vac
Input Current
6.3A
Input Frequency
50-60 Hz
Output Capacity
550W
Dimensino
150 x 140 x 86 mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) fan
80 Plus
Silver
Efficiency
90% at typical load (230V EU)
MTBF
100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm1 CPU/EPS 4+4 Pin x 1 : 650mm1 PCI-e 6+2 Pin x 2 : 600mm+120mm1 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
80 PLUS Silver certified (230V EU)
Support Intel ATX 3.0 standard
120mm Fluid Dynamic Bearing (FDB) Fan
Flat cable design
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
3 years warranty (Adjusted according to different regions)
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
155-240 Vac
Input Current
6.3A
Input Frequency
50-60 Hz
Output Capacity
550W
Dimensino
150 x 140 x 86 mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) fan
80 Plus
Silver
Efficiency
90% at typical load (230V EU)
MTBF
100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm1 CPU/EPS 4+4 Pin x 1 : 650mm1 PCI-e 6+2 Pin x 2 : 600mm+120mm1 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm1 SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
