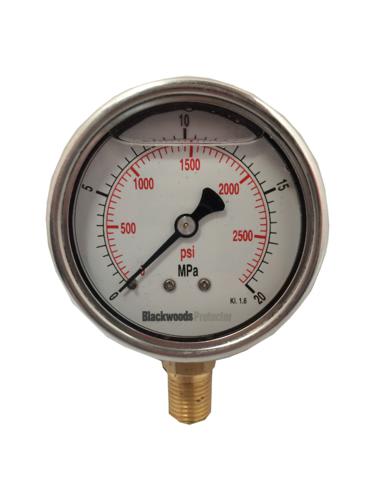

Gauges Pressure SS- 1/4" BSP-Bottom- 0/25MPa

Introducing our SS-1/4" BSP Bottom Pressure Gauge, meticulously engineered for precision and durability. This robust pressure gauge features a sturdy 63mm stainless steel case, ideal for industrial applications where reliability is paramount. With a pressure range of 0 to 25 MPa, this gauge is perfect for hydraulic systems, mining, and irrigation equipment. The glycerine-filled design minimizes vibration and pulsation, ensuring long-lasting accuracy and performance. Crafted from high-quality copper alloy, the bourdon tube and socket provide enhanced resistance against wear, making this gauge suitable for corrosive environments. The plexiglass window and neoprene seal protect against moisture while maintaining a clear view of the scale. Operating efficiently in ambient temperatures from -25°C to +65°C, our pressure gauge boasts an accuracy rating of 1.6%. The 1/4" BSP bottom connection is designed for easy installation, making this pressure gauge an essential tool for professionals seeking reliable measurement solutions. Enhance your industrial operations with the SS-1/4" BSP Bottom Pressure Gauge, available now at Smartfox AU. Experience the quality and performance that only a premium gauge can provide.

63mm stainless steel case pressure gauges are robust industrial quality enclosed within a stainless steel grade 304 case and bezel. Plexi glass window and neoprene seal. Designed for heavy duty service where vibration or pulsation of medium would cause excessive wear on a dry gauge or where corrosive ambient conditions prevail.
Copper alloy bourdon and socket.
Specific application examples are hydraulic plant, mining and irrigation equipment.
Accuracy 1.6%
Ambient Temperature: -25 C to +65 C

TECHNICAL SPECIFICATIONS
Brand/ Model Gauges Pressure
Pressure Min& Max 0-25
Scale Type MPa- Dual
Glycerine Filled
Case Dia(mm) 63
Stem Mount Entry Bottom
Connection 1/4" BSP
