SKU:
PR1041693
Gauge Pressure SS Case 3/8" BSPT 0/2500 kPa
$489.00 AUD
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **

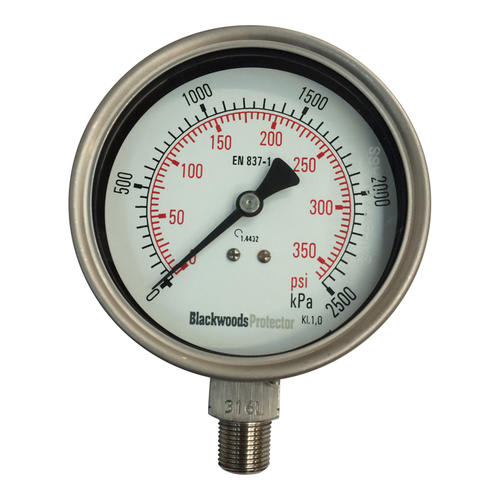

Gauge Pressure SS Case 3/8" BSPT 0/2500 kPa
100mm stainless steel case pressure gauges are ideally suited to most industrial applications where high accuracy and durability are required. These gauges feature a 304SS case. 316L SS bourdon and socket (welded to case). Safety glass window, neoprene blow off disc, gasket and filling plug.
These gauges are stored dry but can be glycerine filled on request.
Accuracy 1%
Ambient Temperature: -25 C to +65 C
TECHNICAL SPECIFICATIONS
Brand/ Model
Gauge Pressure
Pressure Range Min/ Max
0/2500
Scale
kPa
Scale Type
Dual
Case Diameter
100mm
Entry
Bottom/ Stem Mount
Connection
3/8" BSPT
Gauge Pressure SS Case 3/8" BSPT 0/2500 kPa
100mm stainless steel case pressure gauges are ideally suited to most industrial applications where high accuracy and durability are required. These gauges feature a 304SS case. 316L SS bourdon and socket (welded to case). Safety glass window, neoprene blow off disc, gasket and filling plug.
These gauges are stored dry but can be glycerine filled on request.
Accuracy 1%
Ambient Temperature: -25 C to +65 C
TECHNICAL SPECIFICATIONS
Brand/ Model
Gauge Pressure
Pressure Range Min/ Max
0/2500
Scale
kPa
Scale Type
Dual
Case Diameter
100mm
Entry
Bottom/ Stem Mount
Connection
3/8" BSPT
