SKU:
PR1041437

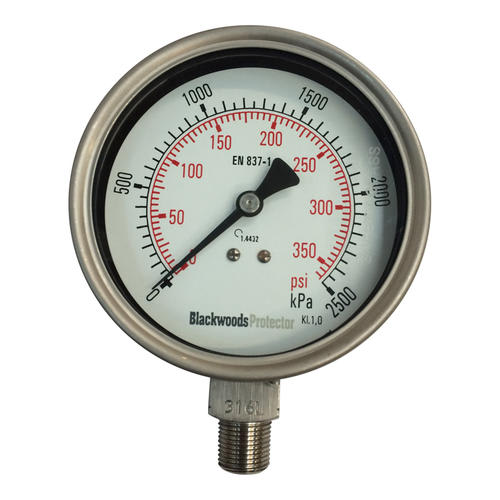

Gauge Pressure SS Case 3/8" BSPT 0/1000 kPa
$425.00 AUD
Unit price
/
Unavailable
Gauge Pressure SS Case 3/8" BSPT 0/1000 kPa is backordered and will ship as soon as it is back in stock.
100mm stainless steel case pressure gauges are ideally suited to most industrial applications where high accuracy and durability are required. These gauges feature a 304SS case. 316L SS bourdon and socket (welded to case). Safety glass window, neoprene blow off disc, gasket and filling plug.
These gauges are stored dry but can be glycerine filled on request.
Accuracy +/- 1%
Ambient temperature: -25 Deg C to 65 Deg C.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand/ Model
Gauge Pressure
Pressure Range Min/ Max
0/1000
Scale
kPa
Scale Type
Dual
Case Diameter
100mm
Entry
Bottom/ Stem Mount
Connection
3/8" BSPT
These gauges are stored dry but can be glycerine filled on request.
Accuracy +/- 1%
Ambient temperature: -25 Deg C to 65 Deg C.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Brand/ Model
Gauge Pressure
Pressure Range Min/ Max
0/1000
Scale
kPa
Scale Type
Dual
Case Diameter
100mm
Entry
Bottom/ Stem Mount
Connection
3/8" BSPT
