SKU:
PR1041238

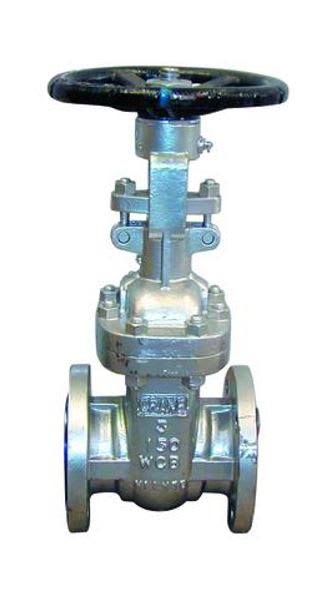

Gate Valve - Flanged Cast Steel 80mm
$3,297.00 AUD
Unit price
/
Unavailable
Specifications/Standards: ANSI Class 150 outside screw and yoke Flexible wedge disc Trim. Applications: Used for steam, water, hot water, oil and fuels.
Body Materials: Cast steel.
Ends: Flanged ANSI class 150.
Handle: Malleable iron.
Seat Materials: Trim hard-faced 13% chrome exelloy.
Temperature Range: Up to 425°C.
Max Working Pressure: 19.7Bar up to 38°C cold water.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Valve Type
Gate Valve
Nominal Size
80mm
Non-shock CWP Bar
19.7
Body Materials: Cast steel.
Ends: Flanged ANSI class 150.
Handle: Malleable iron.
Seat Materials: Trim hard-faced 13% chrome exelloy.
Temperature Range: Up to 425°C.
Max Working Pressure: 19.7Bar up to 38°C cold water.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Valve Type
Gate Valve
Nominal Size
80mm
Non-shock CWP Bar
19.7
