SKU:
PR945501
Exitflex Corrugated Water Suction Hose Assembly 102mm x 3.0m - HOSE ASSMBLY
$1,376.00 AUD
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **

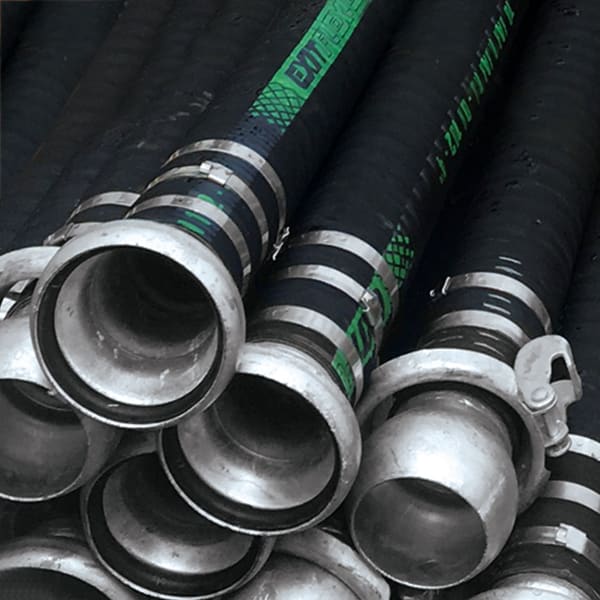

Exitflex Corrugated Water Suction Hose Assembly 102mm x 3.0m - HOSE ASSMBLY
A set length suction and delivery soft ended hose ideally suited for temporary or permanent water transfer applications e.g. pump rentals. Assemblies come fitted with Male & Female Bauer Type B Couplings. Custom made assemblies available on request - get in touch 0800 832 732
Highly flexible compared to standard water suction hoses
Soft cuffed ends for ease of fitting insertion
3:1 safety factor
Ends: Bauer Type B Male & Female
Attachment method: Clamped
Tube: Black NR/SBR Blend
Cover: Black NR/SBR Blend
Reinforcement: High tensile textile braid with embedded wire helix
Colour - HOSE ASSMBLY
TECHNICAL SPECIFICATIONS
Temperature Range
-20°C to +80°C
Max Working Pressure (psi)
150 @ 20°C
Internal Diameter
102mm (4 in)
External Diameter
115mm
Hose Weight per metre (kg./m.)
0.60
Coil Length (m)
3.0
Suction Service Rated (Y/N)
Y
Exitflex Corrugated Water Suction Hose Assembly 102mm x 3.0m - HOSE ASSMBLY
A set length suction and delivery soft ended hose ideally suited for temporary or permanent water transfer applications e.g. pump rentals. Assemblies come fitted with Male & Female Bauer Type B Couplings. Custom made assemblies available on request - get in touch 0800 832 732
Highly flexible compared to standard water suction hoses
Soft cuffed ends for ease of fitting insertion
3:1 safety factor
Ends: Bauer Type B Male & Female
Attachment method: Clamped
Tube: Black NR/SBR Blend
Cover: Black NR/SBR Blend
Reinforcement: High tensile textile braid with embedded wire helix
Colour - HOSE ASSMBLY
TECHNICAL SPECIFICATIONS
Temperature Range
-20°C to +80°C
Max Working Pressure (psi)
150 @ 20°C
Internal Diameter
102mm (4 in)
External Diameter
115mm
Hose Weight per metre (kg./m.)
0.60
Coil Length (m)
3.0
Suction Service Rated (Y/N)
Y
