SKU:
PR918026
Cabac General Purpose Digital Multimeter (Each)
$586.00 AUD
Unit price
/
Unavailable

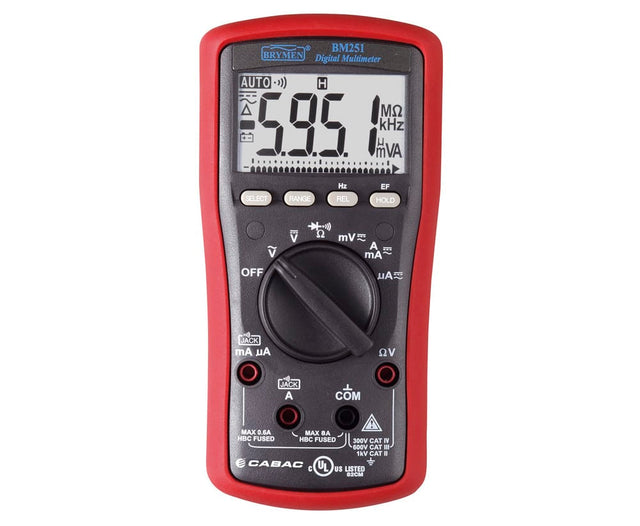

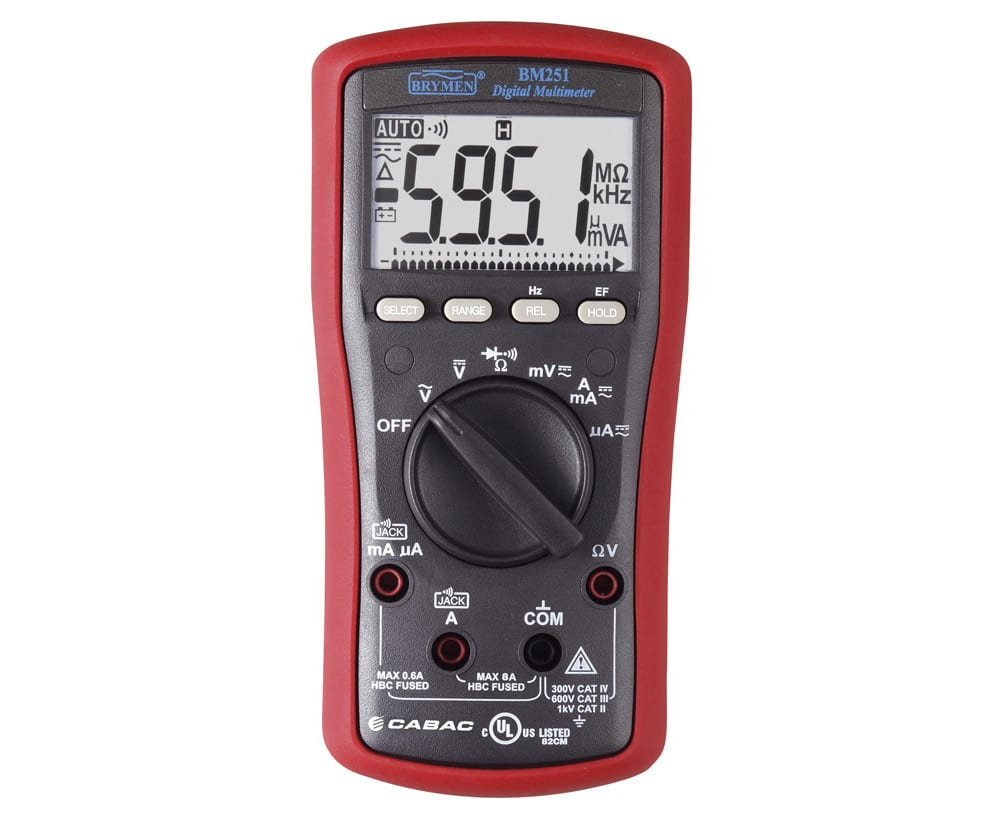

Cabac General Purpose Digital Multimeter
The BM251 is an economical, compact multimeter for electricians offering a perfect balance between price and performance. A good general purpose meter with suitable functions for daily use by a contractor and offering features such as EF (electric fields or non-contact voltage detection), autoranging, data hold, auto power off, etc. It features Beep-Jack, an input, beeps and displays "InEr" on the LCD screen, warning against possible damage to the meter due to improper connections to A, mA & A input jacks.
3 5/6 digit, 6000 count LCD
CAT IV 300V, CAT III 600V
24 segment bar-graph 40 time per second
Splash-proof
EF (NCV) detection
Data hold
BeepJack incorrect input warning
Auto-power 'off' after 34 minutes
PC interface USB/RS232 (optional kit)
Each BM251 is supplied with test leads, operating manual and installed batteries
TECHNICAL SPECIFICATIONS
AC Voltage
60,600mV,6,60,600,1000V
DC Voltage
60,600mV,6,60,600,1000V
Resistance Ohms
600,6,60,600k ,6,60M
AC Current
600,6000µA,60,600mA,6,10A
DC Current
600,6000µA,60,600mA,6,10A
Frequency: Logic Level
5Hz to 500kHz
Frequency: Line Level
5Hz to 10kHz
Non-contact Voltage, EF- detection
20V (10-36V); 55V (23.83V); 110V (59-165V); 220V (124-330V); 440V (250-1000V)
Dimensions
161 x 80 x 50mm (HxWxD)
2 x 1.5V AAA
340g
Batteries
2 x 1.5V AAA
The BM251 is an economical, compact multimeter for electricians offering a perfect balance between price and performance. A good general purpose meter with suitable functions for daily use by a contractor and offering features such as EF (electric fields or non-contact voltage detection), autoranging, data hold, auto power off, etc. It features Beep-Jack, an input, beeps and displays "InEr" on the LCD screen, warning against possible damage to the meter due to improper connections to A, mA & A input jacks.
3 5/6 digit, 6000 count LCD
CAT IV 300V, CAT III 600V
24 segment bar-graph 40 time per second
Splash-proof
EF (NCV) detection
Data hold
BeepJack incorrect input warning
Auto-power 'off' after 34 minutes
PC interface USB/RS232 (optional kit)
Each BM251 is supplied with test leads, operating manual and installed batteries
TECHNICAL SPECIFICATIONS
AC Voltage
60,600mV,6,60,600,1000V
DC Voltage
60,600mV,6,60,600,1000V
Resistance Ohms
600,6,60,600k ,6,60M
AC Current
600,6000µA,60,600mA,6,10A
DC Current
600,6000µA,60,600mA,6,10A
Frequency: Logic Level
5Hz to 500kHz
Frequency: Line Level
5Hz to 10kHz
Non-contact Voltage, EF- detection
20V (10-36V); 55V (23.83V); 110V (59-165V); 220V (124-330V); 440V (250-1000V)
Dimensions
161 x 80 x 50mm (HxWxD)
2 x 1.5V AAA
340g
Batteries
2 x 1.5V AAA
