1
of
2
SKU:
PR1041263
Butterfly Valve WAFER Z011A 316EPE Water Type 300mm
$5,582.00 AUD
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **

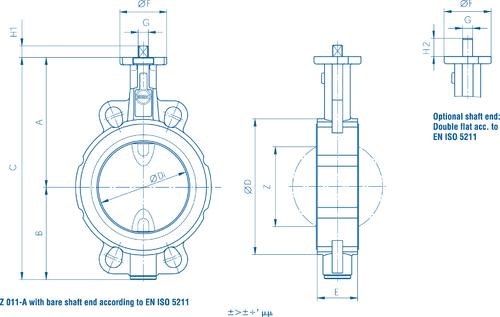

Butterfly Valve WAFER Z011A 316EPE Water Type 300mm
A universally applicable wafer type valve acc. to EN 593. The large variety of basic materials allows applications in different industries. The valve body and disc are accurately machined which results in low operating torque and long service life and reliability. Four flange mounting holes ensure correct valve location when installing.
Absolutely tight sealing with flow in either direction
Triple shaft bearings prevents shaft deflection
Can be installed in any desired position
Maintenance free, fully repairable
On/off and modulating service
Fully epoxy resin coated inside and outside
TECHNICAL SPECIFICATIONS
Model
Z011-A Butterfly Valve
Operator
Bare Shaft
Face/face mm
78
Rating Bar
10
Suit Flangers
E, PN16, ANSI
Nominal Size
300mm
Butterfly Valve WAFER Z011A 316EPE Water Type 300mm
A universally applicable wafer type valve acc. to EN 593. The large variety of basic materials allows applications in different industries. The valve body and disc are accurately machined which results in low operating torque and long service life and reliability. Four flange mounting holes ensure correct valve location when installing.
Absolutely tight sealing with flow in either direction
Triple shaft bearings prevents shaft deflection
Can be installed in any desired position
Maintenance free, fully repairable
On/off and modulating service
Fully epoxy resin coated inside and outside
TECHNICAL SPECIFICATIONS
Model
Z011-A Butterfly Valve
Operator
Bare Shaft
Face/face mm
78
Rating Bar
10
Suit Flangers
E, PN16, ANSI
Nominal Size
300mm
