SKU:
PR1041254

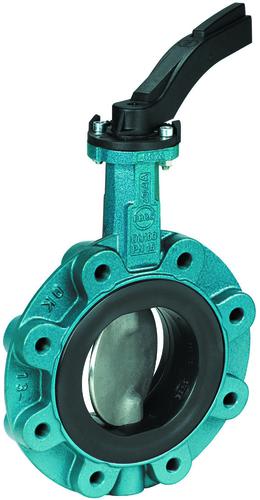

Butterfly Valve -Lug Z014A 316 EPE Ebro-250mm
$5,926.00 AUD
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **
Lug type butterfly valve with threaded holes. Absolutely tight sealing with flow in either direction. The valve body and disc are accurately machined which results in low operating torque and long service life and reliability. Triple shaft bearings prevents shaft deflection and guarantees optimum guidance even after many years of operating service.
Can be disassembled, material specific recycling possible
Single flange mounting is possible
Can be installed in any desired position
Maintenance free and fully repairable
Full epoxy resin coated inside and outside
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Model
Z014-A- Butterfly Valve
Operator
Bare Shaft
Face/face mm
68
Rating Bar
10
Suit Flanges
AS 2129 E
Nominal Size
250mm
Lug type butterfly valve with threaded holes. Absolutely tight sealing with flow in either direction. The valve body and disc are accurately machined which results in low operating torque and long service life and reliability. Triple shaft bearings prevents shaft deflection and guarantees optimum guidance even after many years of operating service.
Can be disassembled, material specific recycling possible
Single flange mounting is possible
Can be installed in any desired position
Maintenance free and fully repairable
Full epoxy resin coated inside and outside
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Model
Z014-A- Butterfly Valve
Operator
Bare Shaft
Face/face mm
68
Rating Bar
10
Suit Flanges
AS 2129 E
Nominal Size
250mm
