SKU:
PR1008624

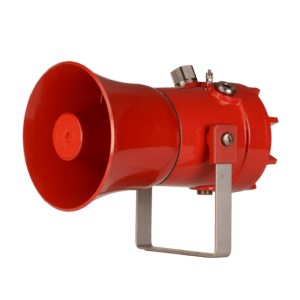

ACC D1xS1F ALARM HORN SOUNDER
$5,825.00 AUD
Unit price
/
Unavailable
ACC D1xS1F ALARM HORN SOUNDER is backordered and will ship as soon as it is back in stock.
The D1xS1F is a high performance globally certified alarm horn sounder featuring a sound output of up to 115dB(A). The robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX Zone 1, 2, 21 & 22 explosion proof signalling applications. Featuring 64 alarm tones with 4 remotely activated stage/channels.
The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance.
The 24Vdc version is EN54-3 EU, UK CPR, MED and MER compliant plus UL464 NFPA compliant for public mode fire alarm use, the 100-240Vac version for general signalling use.
SIL1 & SIL2 Route 2H to IEC61508 (2010), with optional diagnostics for Route 1H SIL2 compliance.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Maximum output
115dB(A) @ 1 metre [106dB(A) @ 10ft/3m] Class II version: 98dB(A) @ 1 metre [88dB(A) @ 10ft/3m]
Nominal output
110dB(A) @ 1m +/- 3dB Tone 4 [101dB(A) @ 10ft/3m] Class II version: 94dB(A) @ 1 metre [84dB(A) @ 1
No. of tones
64 (UKOOA / PFEER compliant)
Effective range
125m/410ft @ 1KHz
Voltages DC
24Vdc (11.5-54Vdc)
Voltages AC
230Vac (100-240Vac)
Stage switching
DC units: positive or negative AC units: common supply line
The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance.
The 24Vdc version is EN54-3 EU, UK CPR, MED and MER compliant plus UL464 NFPA compliant for public mode fire alarm use, the 100-240Vac version for general signalling use.
SIL1 & SIL2 Route 2H to IEC61508 (2010), with optional diagnostics for Route 1H SIL2 compliance.
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Maximum output
115dB(A) @ 1 metre [106dB(A) @ 10ft/3m] Class II version: 98dB(A) @ 1 metre [88dB(A) @ 10ft/3m]
Nominal output
110dB(A) @ 1m +/- 3dB Tone 4 [101dB(A) @ 10ft/3m] Class II version: 94dB(A) @ 1 metre [84dB(A) @ 1
No. of tones
64 (UKOOA / PFEER compliant)
Effective range
125m/410ft @ 1KHz
Voltages DC
24Vdc (11.5-54Vdc)
Voltages AC
230Vac (100-240Vac)
Stage switching
DC units: positive or negative AC units: common supply line
