SKU:
PR1008627

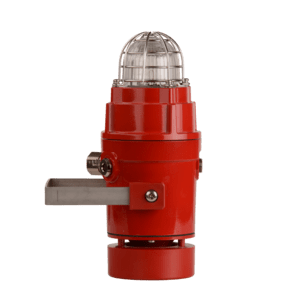

ACC D1xC1X05R RADIAL ALARM HORN Each (Each)
$9,406.00 AUD
Unit price
/
Unavailable
The D1xC1X05R is a globally certified alarm horn sounder with a compact, omni-directional horn and combined with a 5 Joule Xenon strobe beacon. The robust Type 4/4X, IP66/67 marine grade, corrosion proof aluminium enclosure is approved for Class I & II Div 1, Zone 1 & 20, IECEx and ATEX 1, 2, 21 & 22 explosion proof signalling applications
Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated
Class D amplification provides a high sound output at optimum operating current
The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance
The 24Vdc Class I version is approved for public (alarm horn) and private mode fire alarm use (strobe beacon)
SIL1 & 2 compliant to IEC61508 (2010)
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No
D1XC1X05RAC230AB1AR
Maximum output
110dB(A) @ 1 metre [101dB(A) @ 10ft/3m] Class II version: 94dB(A) @ 1 metre [85dB(A) @ 10ft/3m]
Nominal output
105dB(A) @ 1m +/- 3dB Tone 4 [96dB(A) @ 10ft/3m] Class II version: 90dB(A) @ 1 metre [81dB(A) @ 10
Voltages DC
24Vdc (20-28Vdc)
Voltages AC
110-120Vac, 220-240Vac
Featuring 64 alarm tones, each of the 4 stage/channels can be remotely activated
Class D amplification provides a high sound output at optimum operating current
The threaded flameproof joint, multiple cable entries and duplicated, pluggable termination simplifies both installation and routine maintenance
The 24Vdc Class I version is approved for public (alarm horn) and private mode fire alarm use (strobe beacon)
SIL1 & 2 compliant to IEC61508 (2010)
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Mfr No
D1XC1X05RAC230AB1AR
Maximum output
110dB(A) @ 1 metre [101dB(A) @ 10ft/3m] Class II version: 94dB(A) @ 1 metre [85dB(A) @ 10ft/3m]
Nominal output
105dB(A) @ 1m +/- 3dB Tone 4 [96dB(A) @ 10ft/3m] Class II version: 90dB(A) @ 1 metre [81dB(A) @ 10
Voltages DC
24Vdc (20-28Vdc)
Voltages AC
110-120Vac, 220-240Vac
