6x9 Inch Component Speaker System Audison Prima APK 690
$1,263.00 AUD
Unit price
/
Unavailable
6x9 Inch Component Speaker System Audison Prima APK 690 is backordered and will ship as soon as it is back in stock.

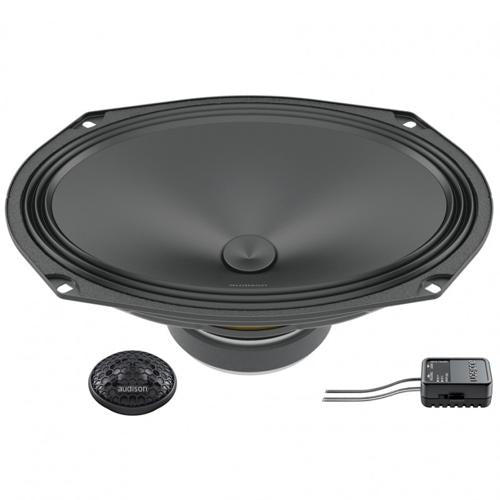

APK 690 systems are ideal for car models with doors equipped to house elliptical speakers, featuring 6x9 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 690. The crossovers are ultra - compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine - tuning. The optimised electro - acoustic parameters of the new woofers include the compact size of the basket for installation in the car door. The mechanical cut - off of the woofer cone - dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients. The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.
Features
AP 1 Tweeter 26 mm diameter diaphragm combined with a wide - roll surround provides maximum efficiency and reduced resonance frequency.
Acoustic lens designed to compensate for the in - car frequency response in the 10kHz - 13kHz bandwidth caused by critical OEM placements.
AP 690 Woofer 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.
Water - repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
Reduced mounting depth, providing ease of installation in OEM placements.
Triple Wave surround profile for maximum excursion linearity.
Compact basket, protected by abrasion - resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
High current fast - on terminal with double contact on positive and negative poles for high flexibility and quick connection.
APCX TW 690 Crossover Optimized for OEM Integration featuring an attenuation switch (0 dB, +3dB) to tune the in - car response according to different installation conditions.
Features
AP 1 Tweeter 26 mm diameter diaphragm combined with a wide - roll surround provides maximum efficiency and reduced resonance frequency.
Acoustic lens designed to compensate for the in - car frequency response in the 10kHz - 13kHz bandwidth caused by critical OEM placements.
AP 690 Woofer 25 mm pure copper voice coil, for high power handling and outstanding low frequency control.
Water - repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
Reduced mounting depth, providing ease of installation in OEM placements.
Triple Wave surround profile for maximum excursion linearity.
Compact basket, protected by abrasion - resistant and scratchproof coating, the motor affixed with damping epoxy adhesive.
High current fast - on terminal with double contact on positive and negative poles for high flexibility and quick connection.
APCX TW 690 Crossover Optimized for OEM Integration featuring an attenuation switch (0 dB, +3dB) to tune the in - car response according to different installation conditions.
