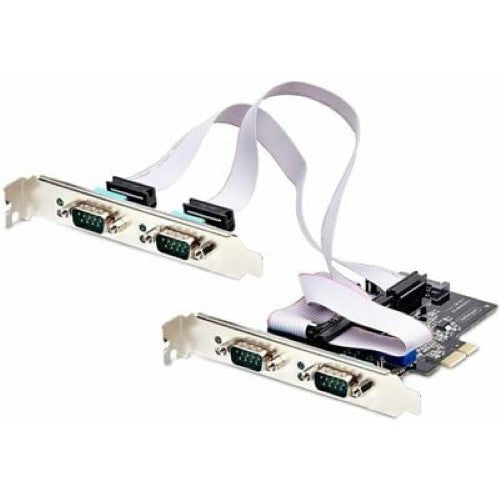

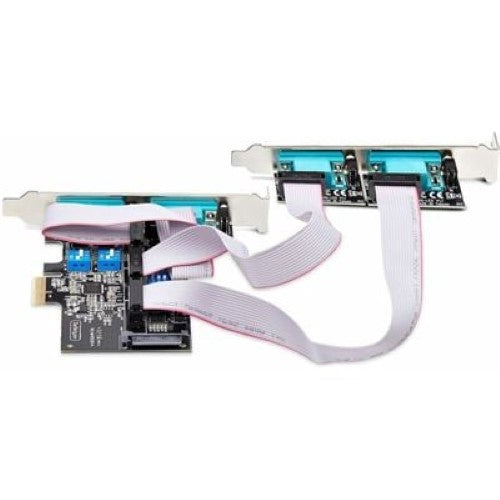

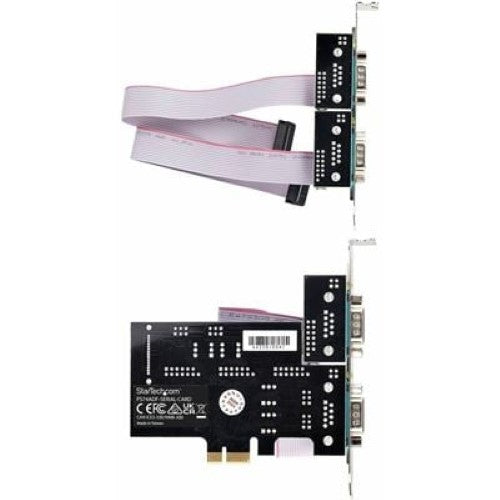

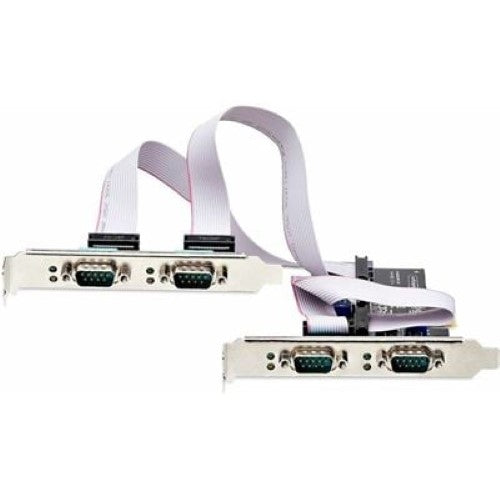

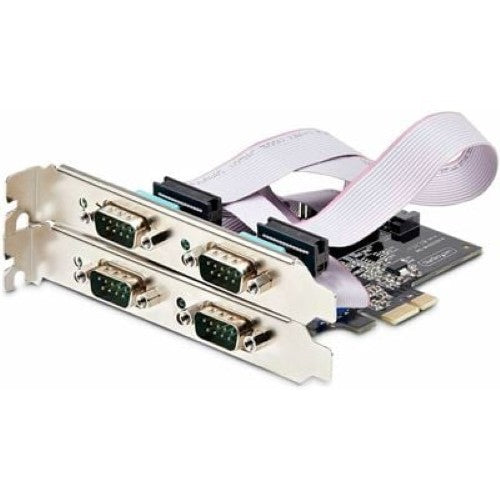

4-PORT SERIAL PCIE CARD RS232/422/485
$569.00 AUD
Unit price
/
Unavailable
StarTech.com 4-PORT SERIAL PCIE CARD FOR RS232/RS422/RS485, 16C1050 UART, 2 YR (PS74ADF-SERIAL-CARD)
OVERVIEW: StarTech.com 4-Port Serial PCIe Card, Quad-Port RS232/RS422/RS485 Card, 16C1050 UART, ESD Protection, Windows/Linux, TAA-Compliant - 4-Port PCIe Serial Card features on-board DIP switches allowing each DB9 port to operate in RS-232/RS-422/RS-485 independently; Jumpers provide the option of 12V/5V/RI @ 1.5A per port; Includes Low-Profile Brackets; Supports Windows/Linux
FEATURES

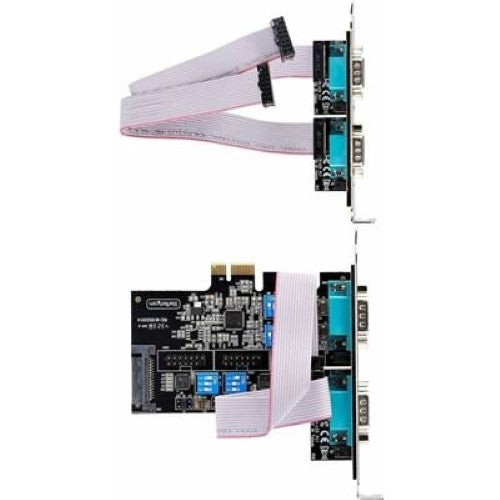

4-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status
CONFIGURABLE POWER: Quad-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers
APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables

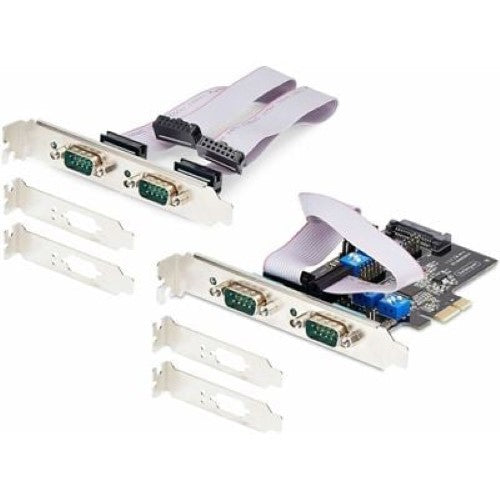

STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with two standard profile brackets (pre-installed), and includes four low-profile brackets for compatibility with small form factor desktops/servers
TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 4x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1
OVERVIEW: StarTech.com 4-Port Serial PCIe Card, Quad-Port RS232/RS422/RS485 Card, 16C1050 UART, ESD Protection, Windows/Linux, TAA-Compliant - 4-Port PCIe Serial Card features on-board DIP switches allowing each DB9 port to operate in RS-232/RS-422/RS-485 independently; Jumpers provide the option of 12V/5V/RI @ 1.5A per port; Includes Low-Profile Brackets; Supports Windows/Linux
FEATURES
4-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status
CONFIGURABLE POWER: Quad-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers

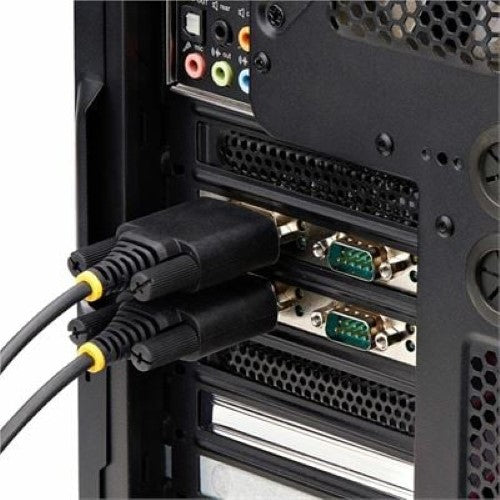

APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables
STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with two standard profile brackets (pre-installed), and includes four low-profile brackets for compatibility with small form factor desktops/servers
TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 4x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1
