SKU:
PR1047624

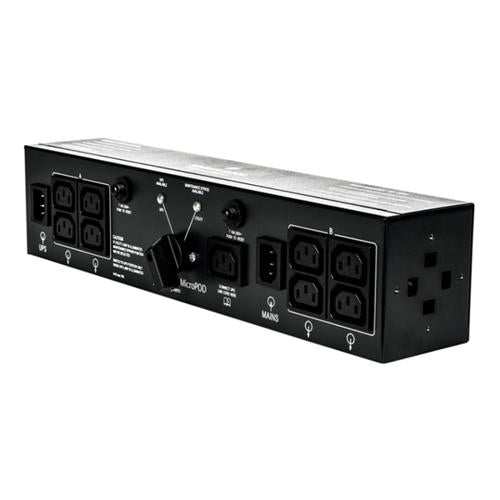

Vertiv PD5-20AC20 Bypass Switch 16A Max for GXT5-3000
$1,953.00 AUD
Unit price
/
Unavailable
When your computer system can’t be without power - even for maintenance - the Liebert® MicroPOD ensures continuous uptime. The Liebert MicroPOD provides maintenance bypass capability as well as power output distribution and can be used with virtually any micro-UPS system. The Liebert MicroPOD allows you to manually transfer your connected equipment to utility power via a maintenance bypass switch, permitting scheduled maintenance or UPS replacement without power disruption. Transferring back to UPS power is very easy – just turn the switch to the indicated position and the load is protected by the UPS. The Liebert MicroPOD is available in plug-and-play or hard wired options at 208 V rating and includes brackets for rack mounting in any direction.
AC Input EN60320/C20
Connection to UPS Input EN60320/C19
Connection to UPS Output EN60320/C20
Output Receptacles/ Protection (2) EN60320/C13 with 10 A circuit breaker (2) EN60320/C13 with 10 A circuit breaker (2) EN60320/C13 with 10 A circuit breaker (1) EN60320/C19 with 20 A circuit breaker
Transfer Time (to and from maintenance bypass) < 6 ms
Dimensions, W x D x H (mm) 394 x 77 x 88
Weight 2kg
Operating Ambient Temperature 0 °C to 40 °C
Storage Ambient Temperature -20 °C to +60 °C
Humidity 0% to 95%, non-condensing
Agency/Standards CE, ISTA Procedure 1 A
AC Input EN60320/C20
Connection to UPS Input EN60320/C19
Connection to UPS Output EN60320/C20
Output Receptacles/ Protection (2) EN60320/C13 with 10 A circuit breaker (2) EN60320/C13 with 10 A circuit breaker (2) EN60320/C13 with 10 A circuit breaker (1) EN60320/C19 with 20 A circuit breaker
Transfer Time (to and from maintenance bypass) < 6 ms
Dimensions, W x D x H (mm) 394 x 77 x 88
Weight 2kg
Operating Ambient Temperature 0 °C to 40 °C
Storage Ambient Temperature -20 °C to +60 °C
Humidity 0% to 95%, non-condensing
Agency/Standards CE, ISTA Procedure 1 A
