SKU:
PR880538
Kale WD12 70-90mm W3 (10pc)
$96.30 AUD
Unit price
/
Unavailable

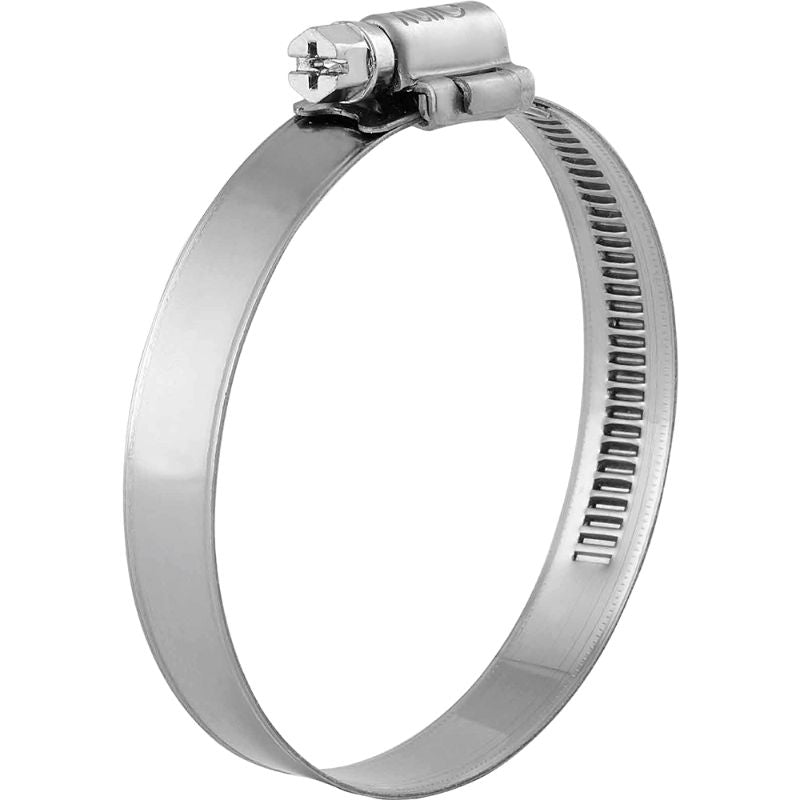

**WD127090W3 - 12mm Band Width Worm Drive Clamp WD12 | 70-90mm capacity | W3**
Features:
- Lightweight design for easy assembly and space-saving with a compact housing and screw configuration.
- Durable construction with a mechanically locked single-piece housing design.
- Burr-free and convex band edges for enhanced safety and usability.
- 100% traceability on the product ensures quality and reliability.
- High clamping force achieved with low tightening torque for efficient operation.
**Technical Specifications:**
- Band Width: 12mm
- Capacity (min - max): 70-90mm
- Tightening Torque (max): 5.0Nm
- Screw Housing Length: 24mm
- Grade W3 - Stainless Steel for Screw, Band & Housing
- Minimum Corrosion Resistance (ISO 9227): 200 hours
- Screw Head: FL | 7mm Hex
Recommended tightening torque and speed: 300 - 350 rpm.
Screw: 1.4016 Stainless DIN EN-10088-3 or equivalent.
Housing & Band: 1.4016 Stainless DIN EN-10088-2 or equivalent.
10% red rust allowed on the total surface of W3 products after salt spray test.
KALE is certified with ISO TS 16949, ISO 9001, and ISO 14001 management systems, meeting the standards of the global automotive industry.
Features:
- Lightweight design for easy assembly and space-saving with a compact housing and screw configuration.
- Durable construction with a mechanically locked single-piece housing design.
- Burr-free and convex band edges for enhanced safety and usability.
- 100% traceability on the product ensures quality and reliability.
- High clamping force achieved with low tightening torque for efficient operation.
**Technical Specifications:**
- Band Width: 12mm
- Capacity (min - max): 70-90mm
- Tightening Torque (max): 5.0Nm
- Screw Housing Length: 24mm
- Grade W3 - Stainless Steel for Screw, Band & Housing
- Minimum Corrosion Resistance (ISO 9227): 200 hours
- Screw Head: FL | 7mm Hex
Recommended tightening torque and speed: 300 - 350 rpm.
Screw: 1.4016 Stainless DIN EN-10088-3 or equivalent.
Housing & Band: 1.4016 Stainless DIN EN-10088-2 or equivalent.
10% red rust allowed on the total surface of W3 products after salt spray test.
KALE is certified with ISO TS 16949, ISO 9001, and ISO 14001 management systems, meeting the standards of the global automotive industry.
