SKU:
PR1047345

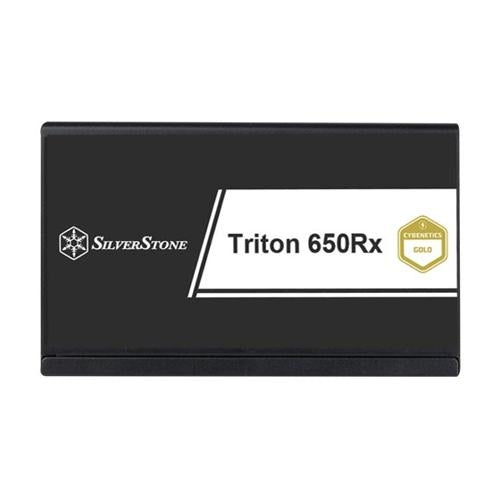

Silverstone TR650R-GF 650W ATX 80plus Gold PSU 3yr wty
$314.00 AUD
Unit price
/
Unavailable
Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
Latest PCIe Gen 5 standard to support up to 2X power excursion

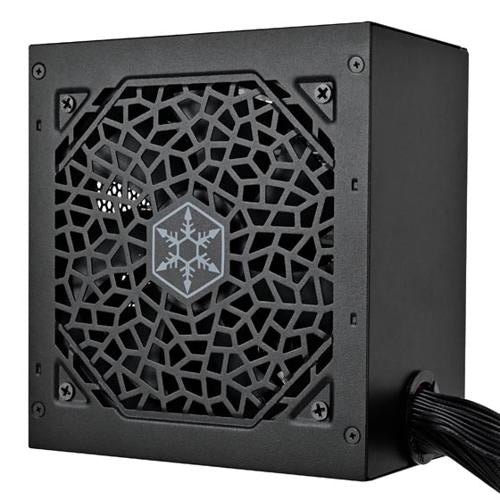

Silent running 120mm ICB (Inside Cavity Bearing) cooling fan
Black embossed cable design
Main Japanese electrolytic capacitors
High efficiency with Cybenetics Gold certification
24/7 continuous power output with 40? operating temperature
Compact design with a 140mm depth for easy integration
Colour
Black (lead-free paint)
Max. DC Output
650W
Power density
359.9W/L
Combined +3.3V & +5V
100W
Combined +12V
649W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC?PF>0.9 at full load?
Efficiency
87% ~ 89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection Over current protection Over voltage protection Short circuit protection Under voltage protection Over Temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 1 x 12+4-Pin 12V-2x6 connector 2 x 8 / 6-Pin PCIe connectors 6 x SATA connector 2 x 4-Pin Peripheral connector
Cooling System
Single 120mm ICB bearing fan
Noise Level
18 dBA min
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
1.48 kg
Latest PCIe Gen 5 standard to support up to 2X power excursion
Silent running 120mm ICB (Inside Cavity Bearing) cooling fan
Black embossed cable design
Main Japanese electrolytic capacitors
High efficiency with Cybenetics Gold certification
24/7 continuous power output with 40? operating temperature
Compact design with a 140mm depth for easy integration
Colour
Black (lead-free paint)
Max. DC Output
650W
Power density
359.9W/L
Combined +3.3V & +5V
100W
Combined +12V
649W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC?PF>0.9 at full load?
Efficiency
87% ~ 89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection Over current protection Over voltage protection Short circuit protection Under voltage protection Over Temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 1 x 12+4-Pin 12V-2x6 connector 2 x 8 / 6-Pin PCIe connectors 6 x SATA connector 2 x 4-Pin Peripheral connector
Cooling System
Single 120mm ICB bearing fan
Noise Level
18 dBA min
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
1.48 kg
