SKU:
PR1047328

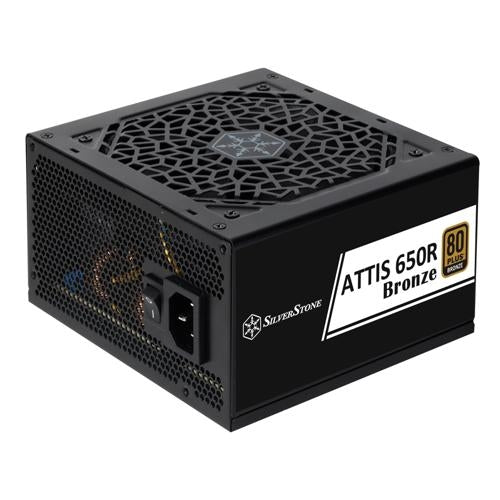

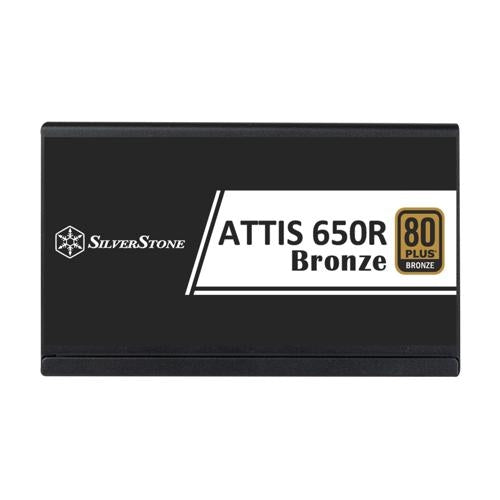

Silverstone AT650R-BF 650W ATX 88/89/86 MEPS PSU 3yr wty
$276.00 AUD
Unit price
/
Unavailable
Compliant with ATX 3.1 standards and supports up to 2X power excursion
High efficiency with 80 PLUS Bronze certification
24/7 continuous power output with 50? operating temperature
Japanese primary capacitor

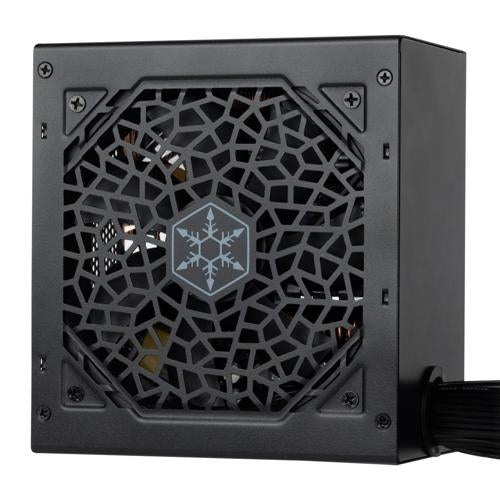

Silent running 120mm fan with 18 dBA minimum
Multiple protection circuitry
Flat cable design
Active PFC+Double forward+DC to DC Design
Max DC Output
650W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
82% ~ 85% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating Temperature
0°C ~ 50°C
Protection
Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector 2 x 4-Pin + 4-Pin ATX 12V connectors 4 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 3 x 4-Pin Peripheral connector
Cooling System
Silent 120mm fan
Noise Level
18 dBA minimum
Certification
80 PLUS Bronze
Form Factor
ATX (PS2)
Dimensions
150 (W) x 86 (H) x 140 (D)
Weight
1.52kg
High efficiency with 80 PLUS Bronze certification
24/7 continuous power output with 50? operating temperature
Japanese primary capacitor
Silent running 120mm fan with 18 dBA minimum
Multiple protection circuitry
Flat cable design
Active PFC+Double forward+DC to DC Design
Max DC Output
650W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
82% ~ 85% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating Temperature
0°C ~ 50°C
Protection
Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection
Connectors
1 x 24 / 20-Pin motherboard connector 2 x 4-Pin + 4-Pin ATX 12V connectors 4 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 3 x 4-Pin Peripheral connector
Cooling System
Silent 120mm fan
Noise Level
18 dBA minimum
Certification
80 PLUS Bronze
Form Factor
ATX (PS2)
Dimensions
150 (W) x 86 (H) x 140 (D)
Weight
1.52kg
