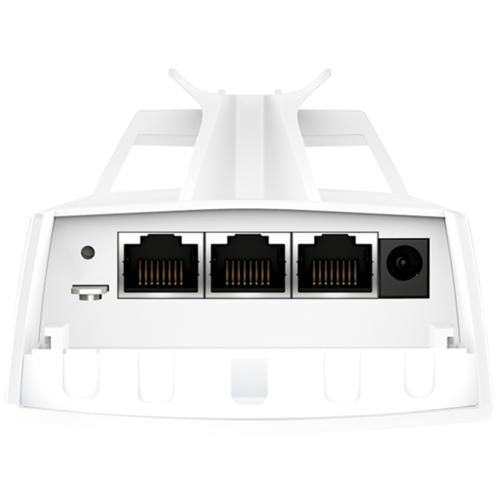

TP-Link EAP100 Wireless Bridge Kit Outdoor 2.4GHz 300Mbps up to 500m

Up to 1640 ft (500 m) Wi-Fi transmission
App-Guided Alignment
3× Fast Ethernet ports
802.3af PoE & DC Power Supply & Passive PoE
IP65 weatherproof
centralized cloud management
LAN Interfaces
3x 10/100 Mbps Ethernet Port

DIP Switch
Role Switch

Wi-Fi Standards
IEEE 802.11b/g/n

Maximum Data Rate
300 Mbps (2.4 GHz)

Wireless Client Capacity
8

Antennas
Internal 2×2 Dual-polarized directional MIMO antenna, 2.4 GHz: 8 dBi, Horizontal Beamwidth: 70°

Transmit Power
CE: <20dBm (2.4 GHz, EIRP)FCC: <22dBm (2.4 GHz)

Reception Sensitivity
2.4 GHz:11N 20MHz MCS0: -9611N 20MHz MCS7: -7611N 40MHz MCS0: -92.511N 40MHz MCS7: -73.5

Omada Software / Hardware Controller
Yes

Omada App
Yes

Maximum Number of MAC Filter
4000

VLAN
Yes

Rouge AP Detection
Yes

Wireless Encryption
Yes

Multiple SSIDs
8

Enable / Disable Wireless Radio
Yes

Enable / Disable SSID Broadcast
Tes

Guest Network
Yes

Transmit Power Control
Adjust Transmit Power on dBm

Mesh
Yes

Beamforming
Yes

MIMO
2x 2 2.4 GHz MIMO

Rate Limit
Yes

RADIUS Accounting
Yes

Reboot Schedule
Yes

Wireless Schedule
Yes

Wireless Statistics
Yes

Static IP/Dynamic IP
Yes

DImensions (W x D x H)
79 x 60 x 224 mm

Operating Temperature
-40 °C–70 °C

Operating Humidity
10%–90% non-condensing
