SKU:
PR881721
Groz 1/4in BSP F-R Unit 20CFM / 550LPM
$200.20 AUD
Unit price
/
Unavailable

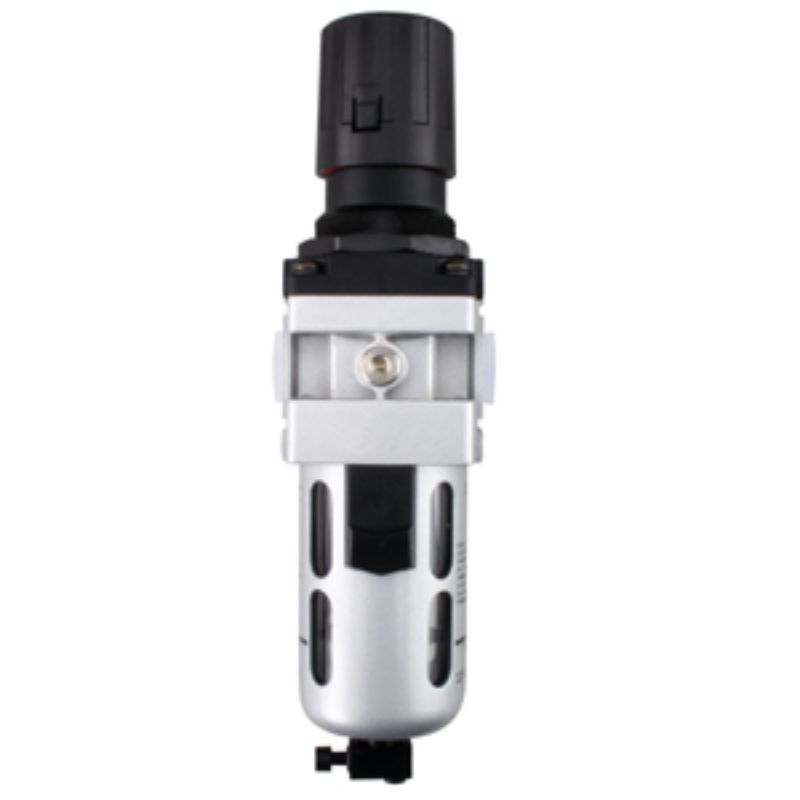

**GZ60308 - GROZ Air Filter-Regulator Combination Unit**
The Filter-Regulator Combination is a highly regarded air preparation unit, expertly engineered to function as a single, efficient system. This air filter effectively separates dust, dirt, moisture, and other contaminants from compressed air. It features a sturdy die-cast aluminium body and a polycarbonate bowl protected by a robust steel bowl guard, alongside a high-performance sintered bronze filtering element.
Designed with a separator and shield for enhanced moisture separation, this unit works effectively with a regulator that maintains consistent outlet pressure, even with fluctuations in inlet pressure. The regulator is equipped with a non-raising “Press to Lock” adjusting knob, allowing secure pressure settings at any desired level. It operates via a diaphragm-controlled, relieving mechanism, providing pressure compensation through a balanced poppet.
**Specifications:**
- Pressure adjustment range: 7 - 145 PSI (0.5 - 10 BAR)
- 40 micron filtering element
- Manual drain with a nighttime drain feature that automatically clears the bowl when the compressed air supply is turned off.
**Wetted Components:**
- Aluminium
- Bronze
- Brass
- Steel
- Acetal
- Polycarbonate
- Stainless Steel
- Nitrile
This compact unit includes a 42mm gauge and achieves a maximum flow rate of 20 CFM / 550 LPM, featuring a threaded type steel bowl guard. It conforms to ISO 6953-1 & 5782-1.
**Warning:** Polycarbonate bowls may be susceptible to damage and potential failure when exposed to synthetic oils, thinners, solvents, trichloroethylene, kerosene, or other aromatic hydrocarbons.
