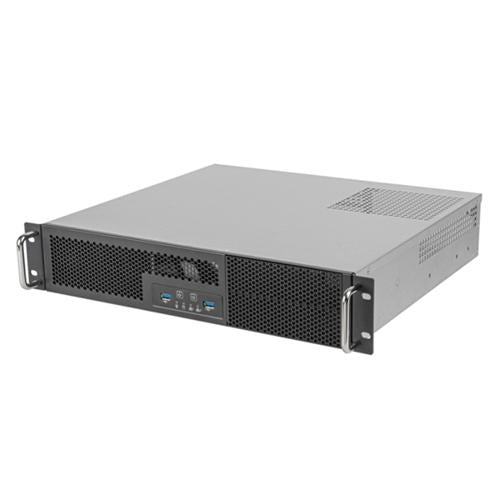

SilverStone RM23-502-MINI mATX 2U Rackmount Case

The RM23-502-MINI is a compact 2U rackmount industrial server chassis designed for Micro-ATX motherboards. It features dual 5.25" drive bays for external devices and supports up to 2 x 3.5" HDDs and 1 x 2.5" SSD internally. Equipped with a USB 3.1 Gen1 interface, it also offers excellent cooling capabilities with a built-in fan bracket supporting two 80mm x 25mm fans. The chassis is compatible with various PSU form factors, including ATX (PS2), 2U Single, or 2U Redundant, providing flexibility in power supply selection. Additionally, it supports low-profile PCI/PCIe slots, making it a versatile choice for industrial server applications.
Supports ATX (PS2) / 2U single / 2U redundant power supplies
Supports 1 x 2.5" SSD and up to 2 x 3.5" HDD
5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
Built-in fan bracket supports up to two 80mm x 25mm fans
Supports Micro-ATX motherboard (9.6" x 9.6")
Supports 4 low-profile PCI / PCIe slots
Chassis Form Factor
2U

Motherboard
Micro-ATX, Mini-ITX

Drive Bay
External: 2x 5.25"
Internal: 2x 3.5" 1x 2.5"

Cooling System
Front: 2x 80 x 25mm fan slot

Power Supply
ATX (PS2) / 2U Single / 2U Redundant

Front I/O Port
2x USB 3.1 Gen 1 Type-A

Main Metal Thickness
1mm

Limitation of CPU
65mm

Expansion Slot
4x Low Profile PCI/ PCIe

Dimensions
430mm (W) x 88.5mm (H) x 400mm (D), 15.22 Liters

Net Weight
4.8kg
