Silverstone DA850R White Decathlon Gold Gen5 850W Modular ATX PSU 5yr
$431.00 AUD
Unit price
/
Unavailable
80 PLUS Gold efficiency certification
Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX3.0/3.1 specification standard
Latest PCIe Gen 5 standard to support up to 2X power excursion
24/7 continuous power output with 50?operating temperature
Silent running 120mm fan with advanced semi-fanless operation
Compact design with a 140mm depth for easy integration
Colour
White
Max DC Output
850W
Power Density
471W/L
Combined +3.3V & +5V
100W
Combined +12V
850W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% & <89%
MTBF
100,000 Hours
Operating Temperature
0°C ~ 50°C
Protection
Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection

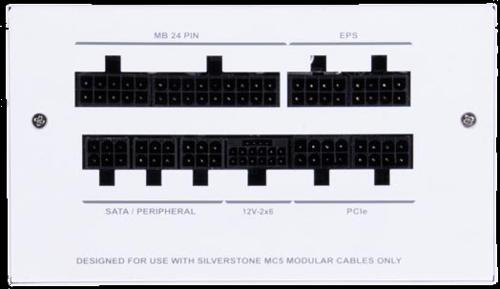

Connectors
1x 24 / 20-Pin motherboard connector 2x 8 / 4-Pin EPS / ATX 12V connector 4x 8 / 6-Pin PCIe connectors 1x 12V-2x6 connector 8x SATA connectors 4x 4-Pin Peripheral connector
Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form Factor
ATX (PS2)
Dimensions
150mm (W) x 86mm (H) x 140mm (D)
Weight
2.13kg
Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX3.0/3.1 specification standard
Latest PCIe Gen 5 standard to support up to 2X power excursion
24/7 continuous power output with 50?operating temperature
Silent running 120mm fan with advanced semi-fanless operation
Compact design with a 140mm depth for easy integration
Colour
White
Max DC Output
850W
Power Density
471W/L
Combined +3.3V & +5V
100W
Combined +12V
850W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% & <89%
MTBF
100,000 Hours
Operating Temperature
0°C ~ 50°C
Protection
Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection
Connectors
1x 24 / 20-Pin motherboard connector 2x 8 / 4-Pin EPS / ATX 12V connector 4x 8 / 6-Pin PCIe connectors 1x 12V-2x6 connector 8x SATA connectors 4x 4-Pin Peripheral connector
Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form Factor
ATX (PS2)
Dimensions
150mm (W) x 86mm (H) x 140mm (D)
Weight
2.13kg
